BOSCH REXROTH
R900172220
$401.00 USD
- BOSCH REXROTH
- Material:R900172220
- Model:MULTISTATION MANI. 2HSR06-25/01C PHOSPH&
Due to extremely high demand, please call 920-337-0234 for availability

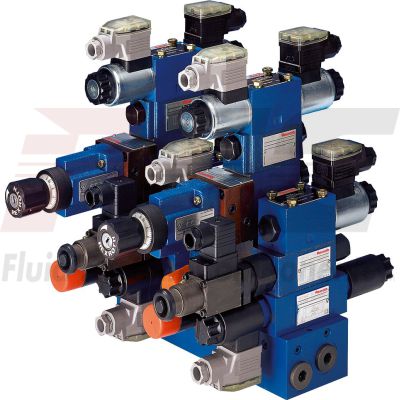

The Bosch Rexroth MULTISTATION MANI. 2HSR06-25/01C PHOSPH (R900172220) is a meticulously engineered compact hydraulic control block designed to facilitate the integration of up to five valves of size 6. This base element is optimized for vertical stacking applications, providing a streamlined solution for ready-for-connection controls. Its construction includes a common pump and tank line, ensuring efficient fluid management, while the separate actuator ports for each station offer versatility in controlling different actuators simultaneously. With a maximum operating pressure of 315 bar, this unit is capable of handling demanding hydraulic tasks with reliability and precision. The surface of the MULTI STATION MANIFOLD is treated with a phosphate coating according to DIN EN standards, which provides additional protection against corrosion and wear. The port sizes for both pump and return are G3/4, adhering to standardized connection points that facilitate easy installation and maintenance. The model boasts an array of features such as optional measuring ports in the actuator lines for monitoring and diagnostics purposes, as well as the capability to mount sandwich plates alongside valves of size 6. The compact design does not compromise on functionality or robustness, making it an ideal choice for applications requiring dense hydraulic controls without occupying excessive space. This product's vertical stacking capability allows for multiple units to be combined seamlessly, enhancing its modularity and adaptability in complex systems. Weighing in at approximately 8 kg and measuring at a length conducive to its compact form factor, this manifold block operates effectively with HLP hydraulic fluid. It represents Bosch Rexroth's commitment to high-quality hydraulic solutions that cater to diverse industrial needs while maintaining efficiency and reliability.
Size 6, 5 valves
Compact hydraulic control for five valves of size 6
Unpacked Weight: 3.56 kg
| Base element for ready-for-connection controls in vertical stacking design |
| Compacter hydraulic control block |
| Common pump and tank line |
| Separate actuator ports of the stations |
| Size 6 |
| Maximum operating pressure 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Surface coating | Phosphate coating DIN EN 12476 |
| Port sizes pump and return | G1/2 |
| Productgroup ID | 9,10,11,12,13,14 |
| Connection point | bottom |
| Size | 6 |
| Length | 288 |
| Number of vertical stackings | 5 |
| Port size | G3/8 |
| Weight | 3.56 |
| Hydraulic fluid | HLP |
|
Manifold |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
HSR |
06 |
‒ |
/ |
01 |
|
Number of ready-for-connection controls in vertical stacking design |
||
|
01 |
1 Control |
1 |
|
2 controls |
2 |
|
|
3 Controls |
3 |
|
|
4 controls |
4 |
|
|
5 controls |
5 |
|
|
6 controls |
6 |
|
|
7 controls |
7 |
|
|
8 controls |
8 |
|
|
9 controls |
9 |
|
|
10 controls |
10 |
|
|
02 |
Manifold |
HSR |
|
03 |
Size 6 |
06 |
|
Component series |
||
|
04 |
Port size: A, B = G3/8; P, T = G1/2 |
25 |
|
With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4 |
35 |
|
|
Connection thread |
||
|
05 |
Pipe thread according to ISO 228/1 |
01 |
|
Position of actuator ports |
||
|
06 |
Lateral |
C |
|
At the bottom |
D |
|
|
Version |
||
|
07 |
Standard version |
no code |
|
With measuring ports in A and B |
S08 1) |
|
|
Coating |
||
|
08 |
Phosphate coating according to DIN EN 12476 |
PHOSPHATED 2) |
|
Galvanic coating DIN 50979 |
FE//ZN8//CN/T0 |
|
|
1) Not possible with component series 25 with lateral actuator ports |
||
|
2) Standard version (manganese or zinc phosphate coating) |
||
|
Size |
6 | |
|
Material |
GGG40 | |
|
Surface coating |
Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) | |
|
Operating pressure max. 1) |
bar |
315 |
| 1) | Manifold without valve fitting |
For applications outside these parameters, please consult us!
