BOSCH REXROTH
R900225845

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

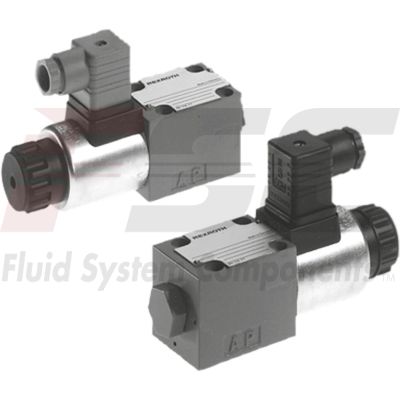

The Bosch Rexroth M-4SED6Y1X/350CG24N9K4QMAG24 (R900225845) is a high-performance industrial hydraulic valve designed to reliably switch oil flow direction. This direct-actuated seat valve features spool symbol Y, which denotes its specific function in hydraulic systems. It comes equipped with a concealed manual override and an auxiliary actuation for enhanced operational flexibility. The valve also includes an inductive position switch type QM, ensuring monitored switching positions for increased safety and efficiency. With a maximum pressure capacity and a maximum flow rate, the M-4SED6Y1X/350CG24N9K4QMAG24 valve is well-suited for demanding applications that require precise control of hydraulic fluid. The electrical connection is facilitated by a connector pole PE conforming to EN standards, emphasizing the product's compatibility with widespread industrial requirements. This model is designed for subplate mounting and follows the connection diagram standards of NFPA T3.5.1 R2 D03 Size 6 and CETOP D03, as well as ISO 4401-03-02-0-05, ensuring easy integration into existing hydraulic systems. The supply voltage required for the solenoid actuation is 24 VDC, which is typical for industrial environments. The valve has a number of switching positions and weighs approximately . Its seals are made from NBR material, making it suitable for use with various types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Overall, the Bosch Rexroth M-4SED6Y1X/350CG24N9K4QMAG24 valve stands out for its robust design and versatile functionality in controlling oil flow direction within hydraulic systems across numerous applications.
