BOSCH REXROTH
R901349517

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

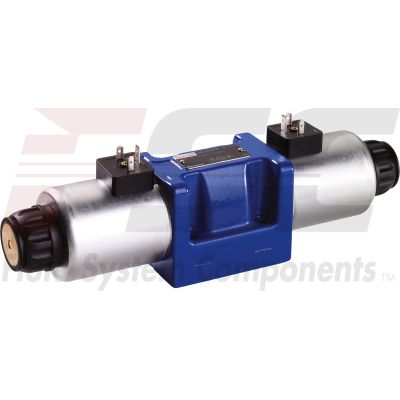

The Bosch Rexroth 4WE10HB5X/EG24N9K4/M (R901349517) is a high-performance industrial hydraulic valve designed for reliable operation in demanding applications. This solenoid-actuated directional control valve is engineered to switch the oil flow direction efficiently, adhering to the hydraulic symbol HB. It features direct actuation with a maximum pressure handling capacity, ensuring robust performance in controlling fluid dynamics within hydraulic systems. The valve comes equipped with an electrical connection that includes a connector pole PE compliant with EN standards, highlighting its compatibility with various industrial setups. As part of Productgroup ID, this component showcases versatility through its number of ports and solenoid-actuated controls, which facilitate precise manipulation of hydraulic operations. With a size specification that conforms to CETOP D and ISO standards, the 4WE10HB5X/EG24N9K4/M valve ensures ease of integration into existing subplate mounting configurations. The connection diagram follows NFPA T3.5.1 R2 D03 patterns for straightforward installation and maintenance processes. This model operates on a supply voltage of 24 VDC and features multiple switching positions for flexible application use. Its construction is robust with a weight of .kg, designed to withstand the rigors of industrial environments. The use of NBR seals enhances the durability and longevity by providing resistance against various types of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Overall, the Bosch Rexroth 4WE10HB5X/EG24N9K4/M valve represents a reliable solution for those seeking precise control in their hydraulic systems with an assurance of quality and performance backed by its robust design specifications.
