BOSCH REXROTH
R901456176

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

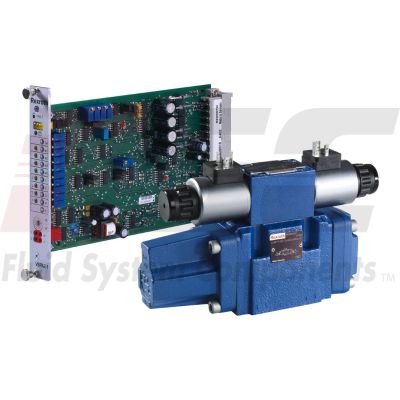

The Bosch Rexroth 4WRZ16W8-180-7X/6EG24N9TK4/D3M (R901456176) is a high-performance industrial hydraulic valve designed to provide reliable control of oil flow direction. This spool valve is pilot-operated with external pilot oil supply and internal pilot oil return, ensuring precise operation. It features a concealed manual override and auxiliary actuation for increased versatility in application. The valve is equipped with a pressure reducing valve and utilizes a spool symbol W for identification. With its capability to handle a maximum pressure and designed for subplate mounting, the 4WRZ16W8-180-7X/6EG24N9TK4/D3M valve ensures durability and ease of installation. The electrical connection is facilitated via a Connector pole PE conforming to EN standards, highlighting its compatibility with various electrical setups. This type of actuation is electrical with external electronics, which allows for precise control. The size of the valve corresponds to CETOP D standards, with the nominal flow rate specified by the manufacturer. Its connection diagram adheres to both NFPA T.. R D Size and ISO standards, ensuring that it can be integrated into diverse hydraulic systems without compatibility issues. Designed for use with several types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC, this Bosch Rexroth valve caters to a wide range of hydraulic requirements. Its seals are made from NBR material which provides good resistance against various oils and fluids. The 4WRZ16W8-180-7X/6EG24N9TK4/D3M valve operates on a supply voltage of VDC and has multiple switching positions available. The weight of the unit is specified by Bosch Rexroth ensuring that users can account for this when designing or modifying their hydraulic systems. With its robust construction and advanced features, this valve stands out as an essential component in industrial hydraulic applications requiring precise flow control.
