HYDRAFORCE
5010661Z

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

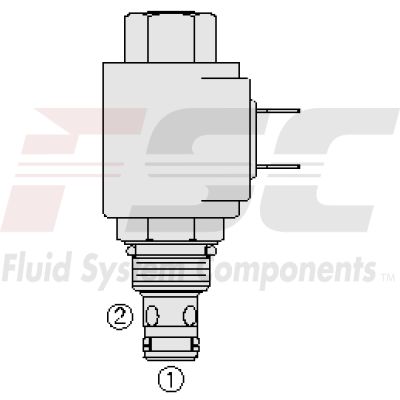

The Hydraforce 5010661Z (5010661Z) is a solenoid-operated, 2-way, piloted, poppet-type, normally open hydraulic cartridge valve engineered for low leakage in high-pressure load-holding applications. The operation of this valve is straightforward: when de-energized, it allows fluid flow from port 2 to port 1 while severely restricting flow in the reverse direction. Upon energization, the valve's poppet seals against its seat, effectively blocking flow from port 2 to port 1 and permitting flow from port 1 to port 2 once the solenoid force of between 50 to 150 psi (3.4 to 10.3 bar) is overcome. The design features of the Hydraforce 5010661Z include a continuous-duty rated coil and corrosion-resistant plating which enhance durability and reliability in various environments. A hardened seat ensures longevity and maintains low leakage over the life of the valve. The unit offers flexibility with optional coil voltages and terminations; cartridges are voltage interchangeable which simplifies maintenance and inventory management. Additionally, it boasts a unitized, molded coil design for robust performance. For operational convenience, a manual override option is available. This model also supports optional waterproof E-Coils rated up to IP69K for superior protection against dust and high-pressure water ingress, making it suitable for harsh conditions. The compact size adheres to industry common dimensions facilitating ease of installation and compatibility with existing systems where space might be limited.
