HYDRAFORCE
5040154

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

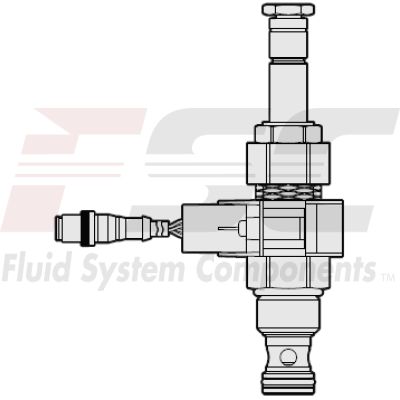

The Hydraforce 5040154 (5040154) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically engineered to serve as a load holding or blocking valve in various applications, particularly where low internal leakage is crucial. Its operation is dual-mode: when de-energized, the SVPAX model functions as a check valve by allowing fluid flow from port 1 to port 2 and blocking the flow in the reverse direction. Upon energization, the poppet lifts to open the port 1 to port 2 flow path while severely restricting flow from port 2 to port 1. This model boasts several key features enhancing its functionality and durability. It includes an integral position sensor that signals when the valve has shifted, making it easier to monitor and control operations accurately. The continuous-duty rated coil ensures reliable performance even under extended operating periods. The hardened seat within the valve enhances its lifespan and minimizes leakage, contributing to overall system efficiency. Additionally, the Hydraforce 5040154 offers optional coil voltages and terminations to accommodate varying electrical requirements. Its efficient wet-armature construction along with voltage interchangeable cartridges allows for flexible application across different systems. The unit's waterproof E-Coils are rated up to IP69K, ensuring protection against ingress of dust and high-pressure water jets. Moreover, its unitized, molded coil design alongside solenoid tubes and coils rated for 500-hour salt-spray ensures robustness in harsh environments.
