BOSCH REXROTH
R900021267
$104.00
- BOSCH REXROTH
- Material:R900021267
Quantity in stock: 35
Mating connector, connector 7-pole (6 + PE) EN 175301-804
For valves with round connector. OEM accessories. Industrial use.
Unpacked Weight: 0.050 kg
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Conformity description | DIN 43563 |
| Electrical connector | Round connector 7+PE |
| Supply voltage | 24 VDC |
| Weight | 0.050 |
| Conformity | DIN 43563 |
|
Mating connector |
Short designation |
7PZ31...K | 7PZ31...M | |||
|
Design |
no code (see unit dimensions) | |||||
|
Ambient temperature |
°C |
-40 … +100 | ||||
|
Protection class according to DIN EN 60529 |
IP 67 with mating connector mounted and fitted | IP65 with mating connector mounted and fitted | ||||
|
Number of poles |
6 + PE | |||||
|
Terminal area for line diameter |
mm |
6.5 … 11 | 9 … 12.5 | |||
|
Wire cross-section, max. |
0.5 ... 1.5 mm2 | |||||
|
Anschlussart |
Soldered joint | |||||
|
Standard |
EN 175201-804 | |||||
| DIN 43563 | ||||||
|
Certification/conformity |
DIN 43563 | |||||
|
Derating |
max. |
6 A with 0.5 mm2 |
°C |
70 | - | |
|
9 A with 1.5 mm2 |
°C |
70 | - | |||
For applications outside these parameters, please consult us!

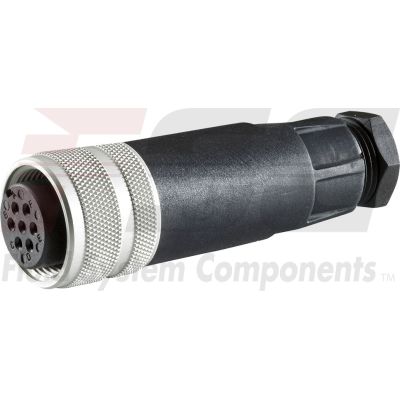

6-pole + PE, plastic version

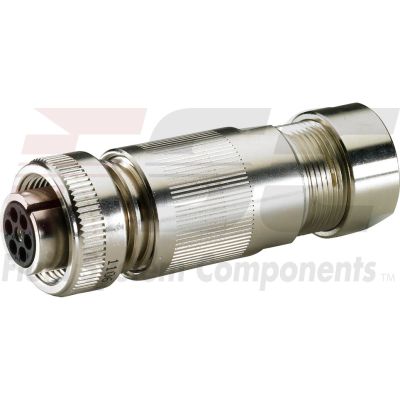

6-pole + PE, metal version

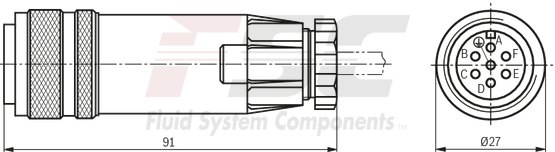

6-pole + PE, plastic version, 7PZ31...K
Dimensions in mm

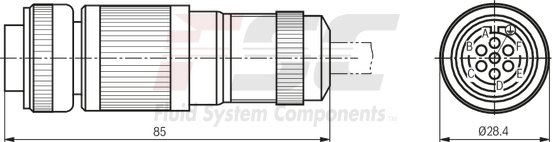

6-pole + PE, metal version, 7PZ31...M
Dimensions in mm
|
1 |
Coupling nut; tightening torque MA = 1 … 1.5 Nm |
