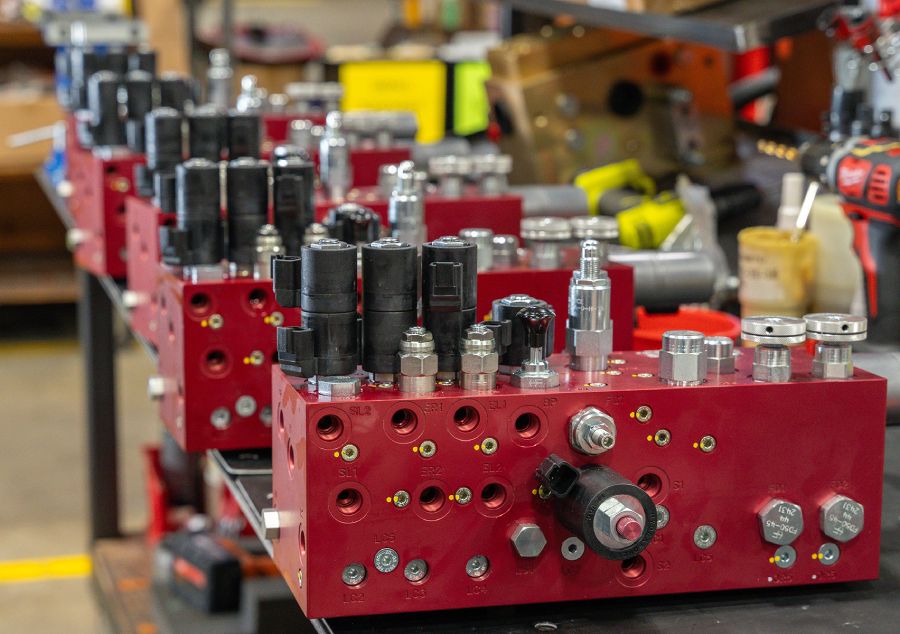

Custom Hydraulic Manifold Assemblies
Hydraulic manifolds help bring multiple circuit functions into a compact, efficient assembly. By consolidating valves, passages, and connection points into a single block, a properly designed manifold can reduce leak points, simplify installation, improve fluid control, and support cleaner system layouts.
FSC designs and assembles custom hydraulic manifolds based on the specific requirements of each application. From prototype development to production assemblies, our team engineers manifolds for performance, reliability, serviceability, and integration into the complete hydraulic system.
Contact FSC

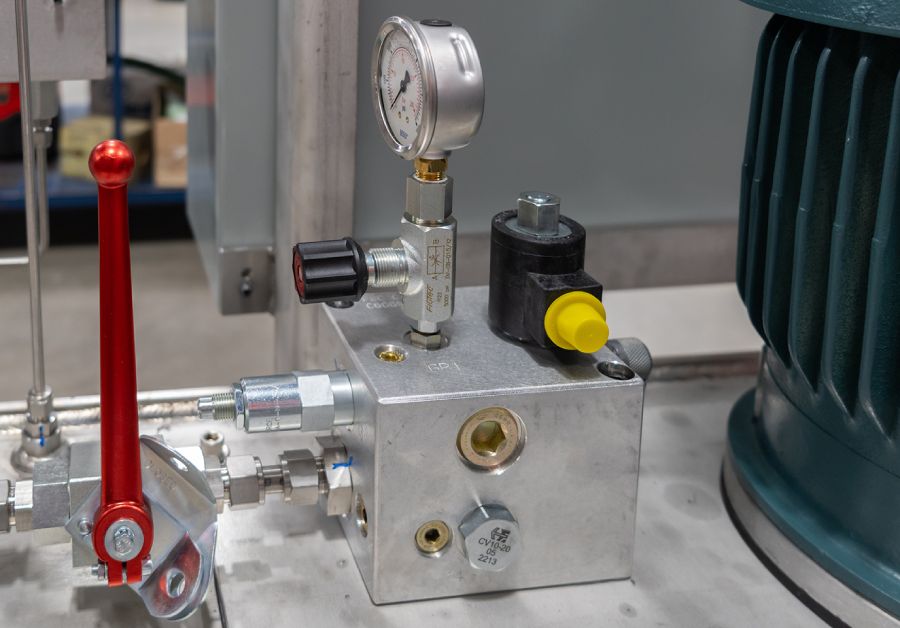

What Does a Hydraulic Manifold Do?
A hydraulic manifold serves as the central distribution point for fluid within a hydraulic circuit.
Rather than connecting multiple valves and components with extensive plumbing, a manifold integrates those functions into a compact assembly. This approach can:
- Reduce leak points
- Simplify system layouts
- Improve serviceability
- Reduce installation complexity
- Support more efficient fluid routing
The result is a cleaner, more integrated hydraulic system.

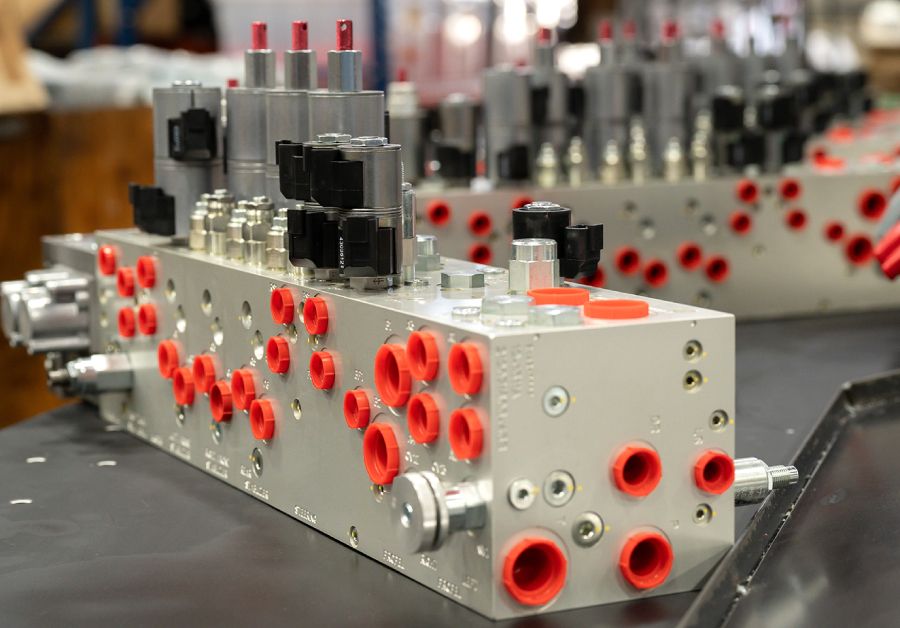

Engineered for Efficient Fluid Control
A manifold is more than a machined block. It influences how fluid moves through the system, how components interact, and how efficiently the circuit performs.
FSC manifold design may include:
- Hydraulic circuit review
- Flow path optimization
- Valve layout and cartridge selection
- Pressure and flow requirement evaluation
- Porting and mounting configuration
- Service access considerations
- Integration with hydraulic power units, mobile equipment, and industrial systems
By designing the manifold around the complete hydraulic circuit, FSC helps support consistent operation, efficient fluid control, and reduced system complexity.

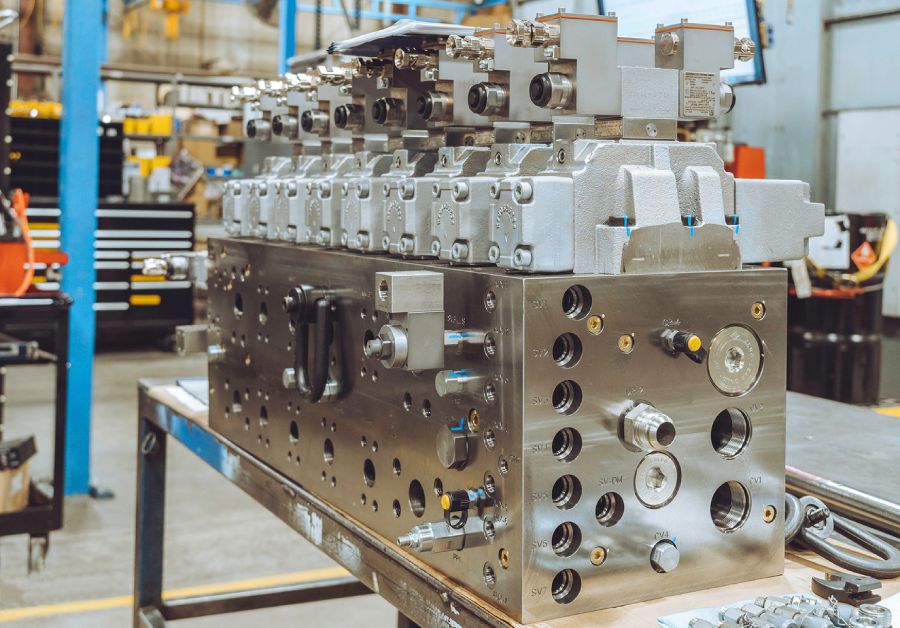

Custom Configuration Capabilities
FSC provides fully customizable manifold assemblies designed around the requirements of the application.
Configuration options may include:
- Multiple valve configurations
- Custom pressure settings
- Size and shape customization
- Custom mounting and porting
- Integrated cartridge valve layouts
- Application-specific connection points
- Prototype and production support
Each manifold is engineered to fit available space, performance requirements, and installation constraints.
Materials, Coatings, and Performance Requirements

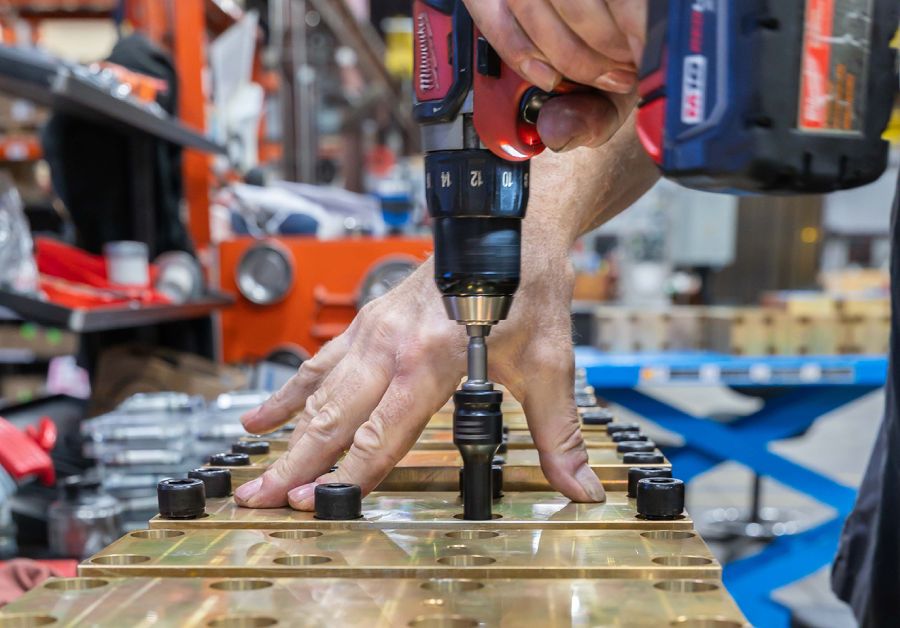

FSC designs manifolds using materials and finishes selected for the application, operating environment, and performance requirements.
Options may include:
- Aluminum manifolds
- Ductile iron manifolds
- Anodized finishes
- Zinc coatings
- Nickel coatings
- Custom porting and mounting configurations
Depending on application requirements, manifold designs may support:
- Pressure ranges up to 10,000 PSI
- Flow ranges from 1 GPM to more than 100 GPM
These options allow FSC to balance weight, durability, corrosion resistance, pressure capacity, and packaging requirements.

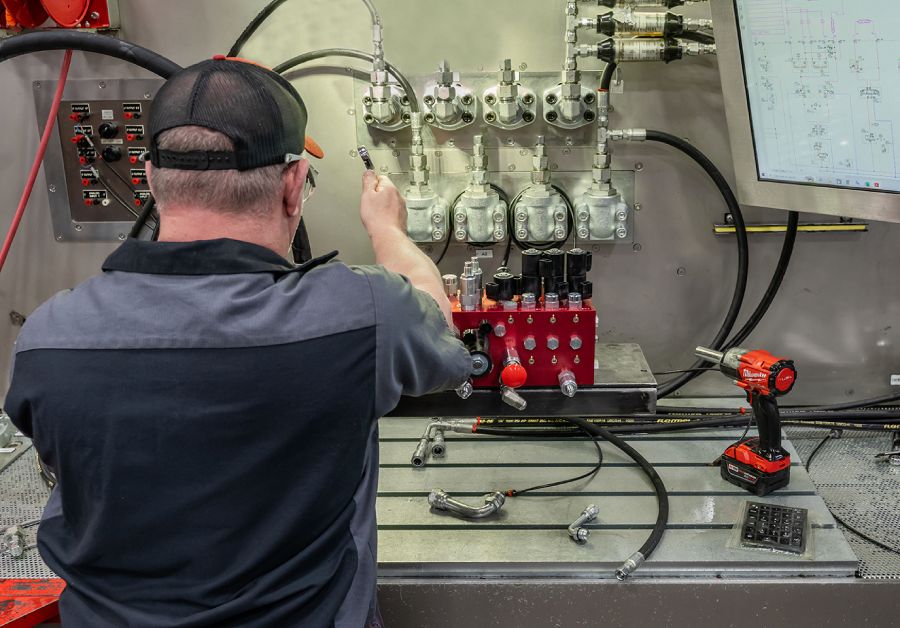

Built and Tested Before Delivery
Each manifold assembly is built with attention to accuracy, cleanliness, and performance.
FSC supports the process through machining coordination, assembly, inspection, and testing to help confirm that the manifold is assembled correctly and performs as intended before shipment.
This approach helps reduce installation issues, supports faster commissioning, and provides greater confidence in field performance.
FSC combines hydraulic engineering expertise with practical manufacturing capabilities to deliver manifold solutions tailored to the application.
Circuit-Focused Design
Every manifold is designed around the complete hydraulic circuit rather than individual components.
Prototype to Production Support
FSC supports manifold development from initial concepts through production assemblies.
Integrated System Expertise
Manifolds are engineered to work seamlessly with hydraulic power units, mobile equipment, industrial machinery, and control systems.

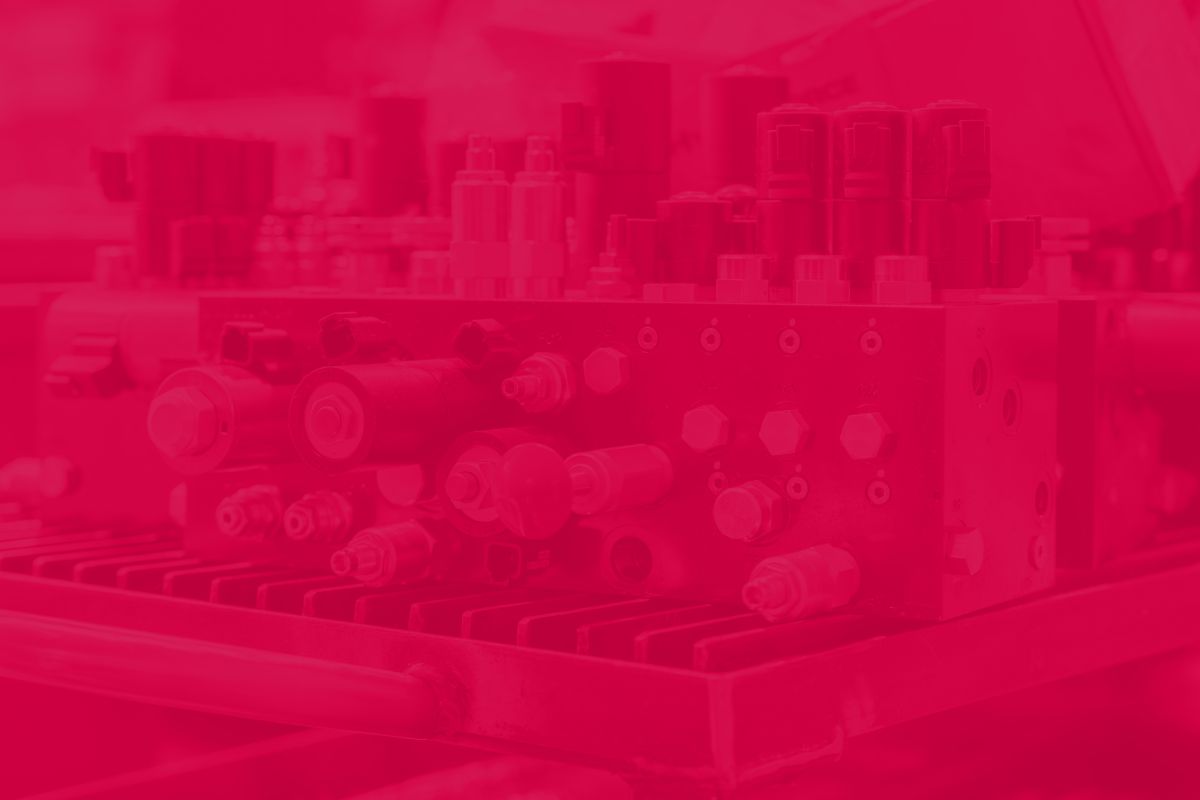

Start Your Manifold Project
Contact FSC to discuss your hydraulic circuit, application requirements, and manifold design goals.
