BOSCH REXROTH
R978911512
$11,504.30 USD
- BOSCH REXROTH
- Material:R978911512

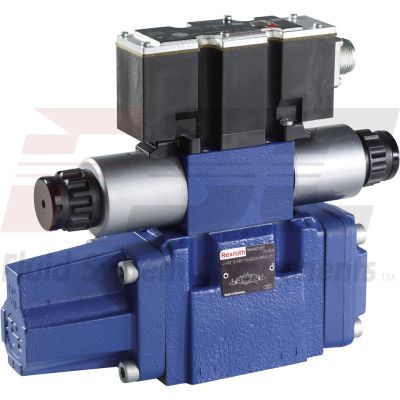

- Model:4WRZE32E520-7X/6EG24N9EK31/F1V
Due to extremely high demand, please call 920-337-0234 for availability
Size 32, symbol E, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol
Unpacked Weight: 44.000 kg
| With concealed manual override: With concealed auxiliary actuation |
| Spool valve |
| Pilot-operated |
| Internal pilot oil supply, external pilot oil return |
| Without pressure reducing valve |
| Component series 7X |
| Maximum operating pressure 350 bar |
| Size 10 … 32 |
| Maximum flow 1600 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | Symbol E |
| Max. pressure | 350 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | Electrical with integrated electronics |
| Size | 32 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 1600 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D10 |
| Size_CETOP | D10 |
| Nominal flow | 520 |
| Connection diagram | ISO 4401-10-09-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 3 |
| Weight | 44.000 |
| Seals | FKM |
| Connectivity | Analog, command value 4 … 20 mA |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
