HYDRAFORCE
5612545V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

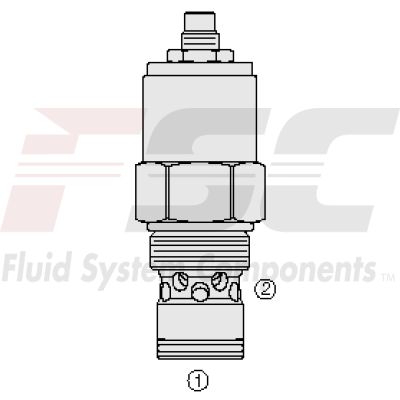

The Hydraforce 5612545V (5612545V) is a screw-in, cartridge-style direct acting poppet relief valve with an integrated reverse flow check valve. Designed for use as a pressure limiter and regulator, this device excels in demanding hydraulic circuits that require fast response times, low hysteresis, minimal leakage, low pressure override, and the ability to facilitate reverse free flow. The RVCV56-20X model effectively blocks flow from port 1 to port 2 until the pressure at port 1 exceeds a certain threshold, at which point the poppet is displaced from its seat allowing relief flow to discharge to port 2. Additionally, it supports reverse flow from port 2 to port 1 when the differential pressure surpasses the check spring value. This robust valve features a maximum pressure capacity of 420.6 bar (6100 psi) at port 1 and incorporates hardened spool and cage components for extended durability. It is engineered to deliver fast and smooth responses to pressure surges while ensuring adjustments cannot be backed out of the valve or allow springs to go solid.
