BOSCH REXROTH
9510290125
$568.00 USD
- BOSCH REXROTH
- Material:9510290125
- Model:AZPF-12-019RRR12MB GO2
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

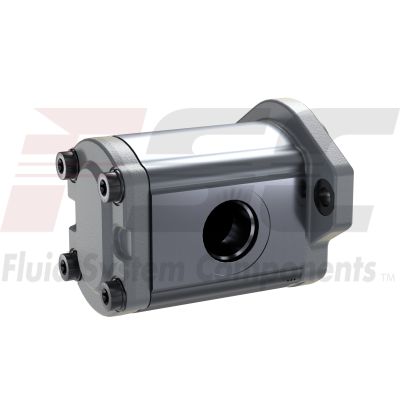

The Bosch Rexroth AZPF-12-019RRR12MB (9510290125) is an external gear pump renowned for its ability to efficiently convert mechanical energy into hydraulic energy with minimized heat losses. This is achieved through pressure-dependent gap sealing and precision manufacturing techniques. Designed for durability and high performance, it features slide bearings capable of handling substantial loads, ensuring a long service life. The pump's construction includes a standard cast iron rear cover and an aluminum housing, contributing to its robustness. With a geometric displacement size and an NBR sealing material, the AZPF-12-019RRR12MB is built for consistent operation. Its corrosion-resistant version with pinned connections ensures reliability in various environments. The standard noise level makes this external gear unit suitable for applications where noise reduction is beneficial. The unit comes equipped with a spline shaft conforming to SAE J 499 T DP standards and flange port connections following the SAE J 518 A bolt pattern, facilitating ease of integration into existing systems. Thread connections are UNB with SAE O-ring compatibility, providing secure and leak-free hydraulic line connections. This model operates at a maximum rotational speed, with the capability of reaching a max flow rate. It is designed to withstand maximum intermittent pressure while maintaining clockwise rotation during operation. The bearing diameter supports the unit's function as a pump within its specified parameters. Overall, the Bosch Rexroth AZPF-12-019RRR12MB external gear pump stands out for its high efficiency, adaptability in various applications, and commitment to quality in both construction and performance.
The Bosch Rexroth AZPF-12-019RRR12MB (9510290125) is an external gear pump renowned for its ability to efficiently convert mechanical energy into hydraulic energy with minimized heat losses. This is achieved through pressure-dependent gap sealing and precision manufacturing techniques. Designed for durability and high performance, it features slide bearings capable of handling substantial loads, ensuring a long service life. The pump's construction includes a standard cast iron rear cover and an aluminum housing, contributing to its robustness. With a geometric displacement size and an NBR sealing material, the AZPF-12-019RRR12MB is built for consistent operation. Its corrosion-resistant version with pinned connections ensures reliability in various environments. The standard noise level makes this external gear unit suitable for applications where noise reduction is beneficial. The unit comes equipped with a spline shaft conforming to SAE J 499 T DP standards and flange port connections following the SAE J 518 A bolt pattern, facilitating ease of integration into existing systems. Thread connections are UNB with SAE O-ring compatibility, providing secure and leak-free hydraulic line connections. This model operates at a maximum rotational speed, with the capability of reaching a max flow rate. It is designed to withstand maximum intermittent pressure while maintaining clockwise rotation during operation. The bearing diameter supports the unit's function as a pump within its specified parameters. Overall, the Bosch Rexroth AZPF-12-019RRR12MB external gear pump stands out for its high efficiency, adaptability in various applications, and commitment to quality in both construction and performance.
19 cm³/rev , Clockwise rotation, Spline shaft SAE J744 16-4 (9T 16/32DP) , SAE J744 82-2 (A) 2-bolt flange, Thread UN-2B, SAE O-ring
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Unpacked Weight: 3.823 kg
| Consistent high quality based on large-volume production |
| Slide bearings for high loads |
| Port connections: flanged or threaded |
| Drive shafts according to ISO or SAE and customer specific solutions |
| Long service life |
| Offer Drawing | Download Offer Drawing |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rear cover | Standard (cast iron) |
| Maximum rotational speed | 3000 |
| Productgroup ID | 7,21,22,23,24,25 |
| Size (geometric displacement) | 19 |
| Sealing material | NBR |
| Version | Corrosion resistant, pinned |
| Noise level | Standard noise level |
| External gear unit | External Gear Unit |
| Application | general |
| Drive shaft | Spline shaft SAE J744 16-4 (9T 16/32DP) |
| Housing material | Aluminum |
| Line connection | Thread UN-2B, SAE O-ring |
| Series | Model F (4 ... 28 cm³/rev) |
| Front cover | SAE J744 82-2 (A) 2-bolt flange |
| Maximum intermittent pressure | 210 |
| Direction of rotation | Clockwise rotation |
| Unit version | Bearing diameter 18mm |
| External gear unit function | Pump |
| Weight | 3.823 |
| Max. flow | 57.0 |
