BOSCH REXROTH
9510390001

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

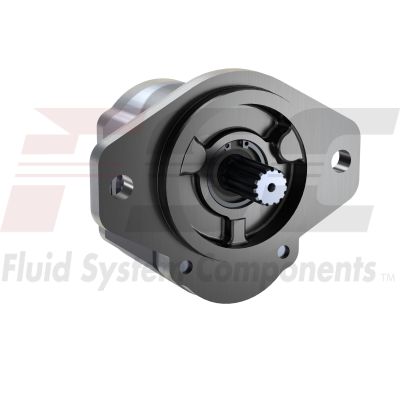

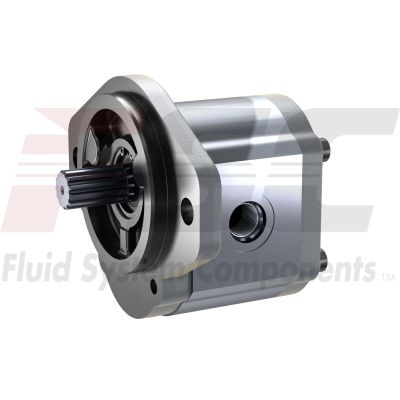

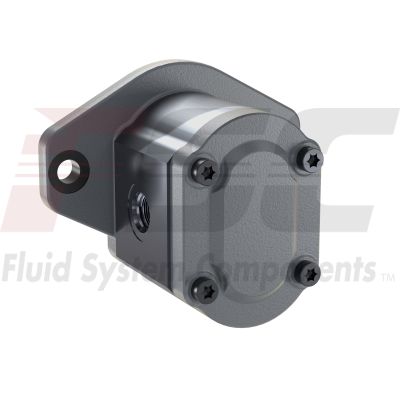

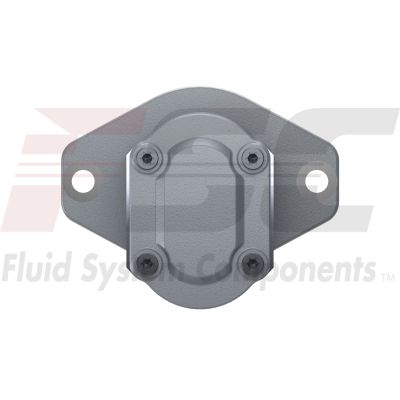

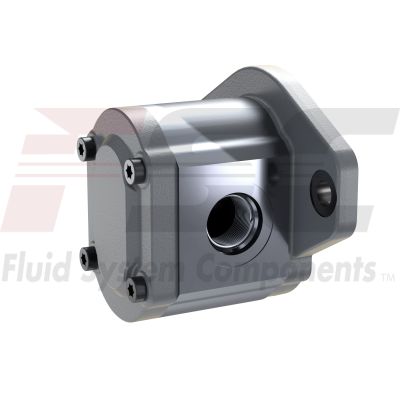

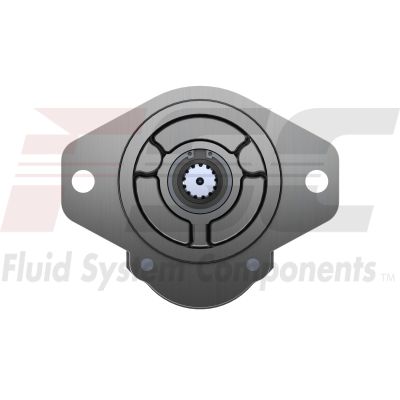

The Bosch Rexroth AZPN-12-020RDC12MB (9510390001) is an external gear pump designed to efficiently convert mechanical energy into hydraulic energy, with a focus on minimizing heat losses through high-efficiency operation. This is achieved via pressure-dependent gap sealing and precision manufacturing techniques. The pump features a clockwise rotation and comes equipped with a spline shaft conforming to SAE J T DP standards, as well as a SAE J B bolt flange for the rear cover. It offers versatile port connections, either flanged or threaded, using UNB threads and SAE O-ring seals. Constructed with an aluminum housing, this unit is engineered for durability and a long service life even under high loads, thanks to its robust slide bearings. The drive shafts are compatible with both ISO and SAE standards, as well as customer-specific requirements, ensuring broad application compatibility. With a standard noise level and corrosion-resistant design that includes pinned connections, the AZPN-12-020RDC12MB maintains consistent quality derived from large-volume production processes. This particular model has a geometric displacement size of ... cm³/rev and uses NBR sealing material. It is capable of handling maximum intermittent pressures with ease while maintaining an optimal performance profile. The pump's maximum rotational speed supports varied operational demands without compromising on reliability or efficiency. Weighing in at . kg, it has a maximum flow rate of . l/min and features a housing width of mm. In summary, the Bosch Rexroth AZPN-12-020RDC12MB external gear pump stands out for its high-quality construction suitable for general applications where efficient hydraulic power conversion is required. Its compatibility with standard drive shafts and line connections makes it an adaptable solution across various hydraulic systems.
