BOSCH REXROTH
9511290035

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

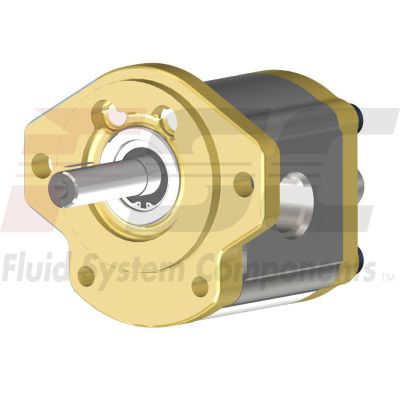

The Bosch Rexroth AZMF-12-019UQR12ML-S0030 (9511290035) is an advanced external gear motor designed to efficiently convert hydraulic energy flow and pressure into mechanical energy, specifically torque and rotational speed. This model boasts birotational capabilities, allowing for flexible operation in both directions, and is equipped with a straight shaft conforming to SAE J500 standards for compatibility with a wide range of applications. The motor features an SAE J518 A bolt flange for secure mounting and utilizes UNB threading with SAE O-ring seals to ensure reliable connections. Engineered for high performance, the AZMF-12-019UQR12ML-S0030 employs pressure-dependent gap sealing coupled with high-precision manufacturing technology to minimize heat loss and maximize efficiency. Its robust construction includes slide bearings capable of handling high loads, contributing to the unit's extensive service life of approximately 1,000,000 actuations. The motor operates within a broad speed range and can be optionally configured for reversible operation in 2- and 4-quadrant systems. The gear motor's aluminum housing material provides a lightweight yet durable structure, while the NBR sealing material ensures resistance against various environmental factors. It also features a corrosion-resistant design with special pinned versions available upon request. With standard noise levels during operation, this model maintains workplace comfort. Key specifications include a geometric displacement size of 19 cm³/rev, a maximum constant pressure capacity, and an axial drain port on the rear cover for maintenance convenience. The unit's bearing diameter is specified at 30 mm, ensuring stability during operation. As part of the F series from Bosch Rexroth, this external gear unit functions primarily as a motor with a weight of approximately 5 kg and can handle a maximum flow rate of 40 l/min.
