- Model:VT-SSPA1-50-1X/V0/I-24
Due to extremely high demand, please call 920-337-0234 for availability

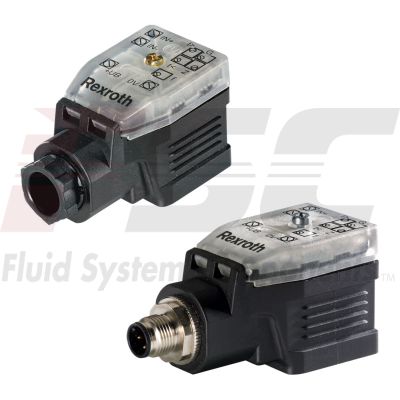

The Bosch Rexroth VT-SSPA1-50-1X/V0/I-24 (R901029783) is a valve amplifier designed for proportional valves with solenoids that do not require position feedback. This compact and easily installed unit is engineered to facilitate quick commissioning and features an analog command value input of 4 to 20 mA. The device can be mounted on a valve connection base that adheres to the EN standard, with the capability of being adjusted in 90-degree increments for optimal positioning. The VT-SSPA1-50-1X/V0/I-24 boasts a command value presetting function, where the solenoid current varies proportionally with the command value within a range of 0 to UB volts. When the command value exceeds a threshold of about 10 volts up to the supply voltage UB, the solenoid current remains nearly constant, making it suitable for switching applications. Equipped with a ramp generator, this amplifier can control the rate of increase or decrease in control output, allowing separate adjustments for ramp-up and ramp-down times. This feature helps mitigate switch-on and switch-off impulses, contributing to smoother transitions during operation. Additionally, this model includes a characteristic curve adjustment with potentiometers for zero point correction and maximum value setting. Its power output stage is freely clocking with an adjustable clock frequency via another potentiometer, ensuring that the regulated current signal matches the control output demand. The VT-SSPA1-50-1X/V0/I-24 also incorporates various components like differential input, zero potentiometer for pilot current adjustment, command value attenuator for maximum current setting, and dither frequency potentiometer. It operates on a supply voltage of 24 VDC and comes in an analog connector design compatible universally with valves requiring up to 2.5 A current. The product's efficient design ensures reliable performance across various proportional valve applications without necessitating complex setup procedures.
Valve amplifier for proportional valves with 1 solenoid without position feedback
for controlling proportional valves without position control. Compact design. Quick assembly and short commissioning times.
Unpacked Weight: 0.12 kg
The plug-in amplifier is suitable for installation on a valve connection base according to EN 175301-803. By turning the plug insert and the electronics in the housing, the plug-in amplifier can be mounted on the solenoid in 90° increments.
Command value presetting
The command value range is between 0 and UB. In the command value range 0... 10 V the solenoid current is proportional to the command value. Starting with a command value of 12 V up to UB the solenoid current is almost constant according to the Imax setting (switching application).
Ramp generator
The ramp generator (5) limits the incline of the control output. The up and down ramp times can be adjusted separately. In switching applications, the ramps can be used to dampen the switch-on and switch-off impulse (When switching off only with 3-conductor connection, i.e. switching signal and supply are connected separately). This behavior also depends on the valve and solenoid type. The downstream command value attenuator (4) has no influence on the ramp time.
Characteristic curve
Up to a command value of approx. 110 % the transfer characteristic curve rises linearly. The zero point can be corrected using potentiometer “Z“, the maximum value can be corrected using potentiometer “G“.
Power output stage
Output stage (7) is freely clocking. The clock frequency depends on the current level, the operating voltage and the impedance of the controlled solenoid. The clock frequency can be re-adjusted using potentiometer “f“. The current output stage generates a regulated current signal according to the control output provided by the summing device (3). If the clock frequency is too high, the valve hysteresis is increased. If the clock frequency is too low, the noise level of the hydraulic system is increased.
()= Assignment to the block diagram
| For universal valves with solenoid 2.5 A |
| Communication: Command value input 4 … 20 mA |
| Electrical connection: Connector 4-pole, M12x1, A-coding according to EN 175301-803 |
| Component series 1X |
| For valves: universal, 2.5A |
| Analog, connector design |
| Analog, connector design |
| DBETX-1X...-25, DBE6X-1X...-25, 3(2)FREX...-1X...-25 |
| Component series 2X |
| For valves: |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Productgroup ID | 9,10,11,12,13,14 |
| Electrical connector | Cable gland |
| Supply voltage | 24 VDC |
| Design | Connector |
| Weight | 0.12 |
| Connectivity | Analog, command value 4 … 20 mA |
|
01 |
Valve amplifiers for proportional valves without electrical position feedback, Analog, Connector design |
VT-SSPA1 |
|
02 |
For valves: universal, 2.5 A |
50 |
|
03 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
04 |
Version: standard |
V0 |
|
Version: ramp time 10 ms to 2 s |
V002 |
|
|
05 |
Voltage input |
0 |
|
06 |
24 V operating voltage |
24 |
|
07 |
With cable gland |
No code |
|
With M12 connector |
K24 |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
||||||
|
VT-SSPA1 |
‒ |
50 |
‒ |
1X |
/ |
/ |
0 |
‒ |
24 |
/ |
General
|
Component series |
1X | ||
|
Type of electronics |
Analog | ||
|
Design |
Plug-in connector |
Voltage supply
|
Operating voltage |
nominal |
U |
V |
24 |
|
Lower limit value |
UB(t)min |
V |
18 | |
|
Upper limit value |
UB(t)max |
V |
35 | |
|
Cable inductance 1) |
max. |
Lmax |
µH |
100 |
|
Power consumption |
max. |
Smax |
VA |
60 |
|
Current consumption |
max. |
Imax |
A |
2.6 |
|
Fuse |
3.15 A time-lag | |||
| 1) | Usually corresponds to a line length < 100 m. |
Analog inputs
|
Command value |
Voltage (differential input) |
U |
V |
0 ... 10 | |
|
for the switching function of the proportional amplifier |
12 ... UB | ||||
|
Voltage (differential input) |
Input resistance |
R |
kΩ |
≥ 20 | |
Solenoid outputs
|
Coil inductivity |
min. |
Lmin |
mH |
10 |
|
Pilot current |
Factory setting |
Iv |
mA |
100 |
|
Solenoid current |
Factory setting |
I |
A |
2.5 |
|
Coil resistance at 20°C |
R(20) |
Ω |
2 | |
|
Clock frequency |
at Imax |
f |
Hz |
305 |
Adjustment options
|
Setting range |
Pilot current |
IB |
mA |
0 ... 350 |
|
Solenoid current |
Imax |
A |
0 ... 2.6 | |
|
Ramp time up/down 1) |
t |
s |
0.06 … 5 | |
| 1) | 0,01 ... 2 s with version V002 |
Supplementary information
|
Standard connection |
of solenoid |
EN 175301-803 | ||
|
Anschlussart |
Cable gland and screw terminals | |||
|
alternatively |
M12 connector, 4-pole | |||
|
Cable diameter |
L |
mm |
4.5 ... 11 | |
|
Mounting type |
L |
M3 x 40 mm | ||
|
Type of protection according to EN 60529 1) |
Extra für FN |
IP65 | ||
|
Ambient temperature range 2) |
ϑ |
°C |
-25 … 60 | |
|
Storage temperature range |
ϑ |
°C |
-25 … 85 | |
|
Weight |
m |
kg |
0.125 | |
| 1) | With mounted cable/mounted mating connector |
| 2) | -25 ... 50° C with M12 variant |
For applications outside these parameters, please consult us!
|
G |
Command value attenuator / maximum current |
|
Z |
Zero point potentiometer / pilot current |
|
t < |
Ramp time "Ramp up" |
|
t > |
Ramp time "Ramp down" |
|
f |
Clock frequency |
|
(1) |
Internal voltage adjustment |
|
(2) |
Voltage input |
|
(3) |
Zero point potentiometer “Z” / pilot current I (IN = 0 %) |
|
(4) |
Command value attenuator “G” / maximum current I (IN = 100 %) |
|
(5) |
Ramp time potentiometer “t<” and “t>” |
|
(6) |
Frequency range correction “f” |
|
(7) |
Power output stage |
|
Terminal / pin |
Signal designation |
|
+UB / 1
|
Operating voltage |
|
0 V / 3 |
0 V |
|
IN+ / 2 |
Command value |
|
IN- / 4 |
Reference potential |
Terminal connection
Danger of malfunctions
with EMC/ESD interferences affecting the connection cable
Do not install command value
connection lines in the gray area (arrow)!
The connection for protective earthing conductor is accessible after the
electronic circuit board has been removed.
Connection cross-section:
4 x 1.5 mm2 shielded (connect shield in control cabinet)
Cable diameter: 4.5...11 mm
Terminal connection
M12 connector, top view
The connection for protective earthing conductor is not provided
Connection cross-section:
4 x 0.75 mm2 shielded
(connect shield in control cabinet)
2-conductor technology
Switching application with constant current control Ramp function upon switch-onThe “IN+” input is bridged with supply voltage (+UB) in the connector, the IN- input is bridged with supply voltage (0 V) in the connector.
The maximum current must generally be adjusted according to the solenoid information using potentiometer "G". The ramp time "ramp up" (t <) can be set within the range of tmin to 5 s.
2-conductor technology
3-conductor technology
Switching application with constant current control
Switching with low control power
Ramp function can be adjusted separately when switching the control voltage on and off
The “IN+” input is connected to the control voltage
(Us = 24 V), the “IN–” input is bridged with supply voltage (0 V) in the connector.
The maximum current must generally be adjusted according to the solenoid information using potentiometer "G". When switched off ("IN+" = 0 V or "IN+" = open), a pilot current can be set at "Z". It serves to reduce the switch-on delay, particularly with ramp. If required, this value can be adjusted between approx. 0 mA and approx. 15 % of the rated current. The ramp times “ramp up” (t <) and “ramp down” – (t >) can be set within the range of tmin to 5 s.
3-conductor technology
4-conductor technology
The “IN+” input is connected to the control signal (Us = 0...10 V/24 V), the “IN–” input to the reference potential of the control voltage.
Pilot current and maximum current are set using potentiometers "Z" and "G" prior to commissioning. The current can now be proportionally adjusted according to the control voltage between the set pilot current and the set maximum current. The pilot current can be set in the range from approx. 0 to approx. 15 % of the rated current, the maximum current can be set in the range from 0 to Imax .
4-conductor technology
The connector insert can be turned in 90° steps observing the protective measures for ESD protection.
The plug-in amplifier may only be wired when de-energized.
Do not lay lines close to power cables.
The distance to aerial lines, radios, and radar systems has to be at least 1 m.
To set the potentiometers and to check the current values, use the measuring adapter and measure the currents in a potential-free manner.
The specified maximum solenoid currents must not be exceeded.
Do not use solenoids with integrated free-wheeling diodes.
The supply voltage is to be protected by means of a fuse – see Technical data.
Notice:
The solenoids are controlled with a clocked voltage. The solenoid voltage impulse level corresponds to the applied operating voltage (+UB).
Solenoids with integrated EMC protection circuit may only be used if the response voltage of the protection circuit - for both, positive and negative voltage - is greater than the actual operating voltage.
The manufacturer's specifications of the valves are to be observed.
Notice:
With a strongly fluctuating operating voltage, it may in the individual case be necessary to use an external smoothing capacitor with a capacity of at approx. 470 µF to 2200 µF.
The line length should not exceed 50 m. For longer lines, a capacitor with C ≥ 100 µF has to be connected between UB and 0 V. The line between capacitor and plug-in amplifier must not exceed 50 m.
Recommendation: VT 11110 capacitor module (see data sheet 30750); sufficient for up to 5 plug-in amplifiers
