BOSCH REXROTH
R900512452

$1,193.00 USD

BOSCH REXROTH
Material:R900512452
Model:ZDR10VP5-3X/200YM/12

Due to extremely high demand, please call 920-337-0234 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

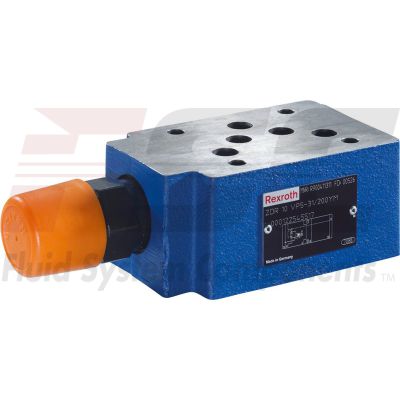

The Bosch Rexroth ZDR10VP5-3X/200YM/12 (R900512452) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a preset value. This spool valve is pilot-operated and features a pressure rating of up to 315 bar. The model is equipped with a sleeve that has a hexagon shape and includes a protective cap, ensuring durability and safety during operation. It's designed with the spool symbol P → P, indicating its function in the hydraulic system. The ZDR10VP5-3X/200YM/12 valve offers mechanical actuation and has a size of 10, which corresponds to its flow capacity. The maximum flow rate for this valve is determined by its size and operating pressure. It utilizes a sandwich plate connection type, making it compatible with standard mounting surfaces as defined by NFPA T3.5.1 R2-2002 D03 and ISO 4401 porting patterns. With three switching positions, this robust valve can handle various applications requiring precise pressure control. It has an approximate weight of 1.7 kilograms and uses NBR seals compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Additional features include an optional check valve for channels A and B, which facilitates free return flow from A to A or B to B channels – except in version P where this option is not available. For monitoring purposes, there's also a pressure gauge connection that enables checking of the secondary pressure. The Bosch Rexroth ZDR10VP5-3X/200YM/12 stands out for its versatility with various adjustment types available such as rotary knob, sleeve with hexagon and cap, lockable rotary knob with scale or rotary knob with scale – providing flexibility for different operational requirements. This sandwich plate valve ensures consistent performance in controlling system pressures within hydraulic circuits across numerous applications.

Size 10, P2 → P1, mechanical

Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.

Unpacked Weight: 2.4 kg

Pressure valves of type ZDR 10 V are pilot-operated pressure reducing valves in sandwich plate design. They are used for reducing a system pressure.

The pressure valves basically consist of pilot control valve (1) and housing (2). The secondary pressure is set via the adjustment type (4).

Pressure reduction in channel P➀ ("P")

In initial position, the valves are open. Hydraulic fluid can flow from channel P➁ to channel P➀ without restrictions.

The pressure in channel P➀ acts simultaneously at the main spool (6), via the bore (5) at the spring-loaded inside of the main spool (6) and via the nozzle (9) on the pilot poppet (8).

If the pressure in channel P➁ exceeds the value set at the compression spring (7), the pilot poppet (8) opens.

Hydraulic fluid flows from the spring-loaded inside of the main spool (6) via the nozzle (9) and the pilot poppet (8) into the spring chamber (10). The main spool (6) assumes its control position and keeps the value in channel P➀ set at the compression spring (7) constant. The pilot oil return from the spring chamber (10) is realized via port TA.

Pressure reduction in channel A➁ and B➁ ("A" and "B")

For free return flow from channel A➁ to A➀ / B➁ to B➀ , a check valve can be optionally installed (not possible with version "P").

A pressure gauge connection (3) enables control of the secondary pressure.

Type ZDR 10 VP5–3X/.YM…

technical illustration-R900512452-Size 10, P2 → P1, mechanical

➀	component side
➁	plate side

Spool valve
Pilot-operated
Pressure rating 200 bar
Internal hexagon with protective cap
Maximum flow 100 l/min
Maximum operating pressure 315 bar
Size 10
Component series 3X

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	P2 → P1
Max. pressure	315
Productgroup ID	9,10,11,12,13,14
Number of ports	5
Type of actuation	with mechanical actuation
Size	10
Max. flow	100
Type of connection	Sandwich plate
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D05
Size_CETOP	D05
Connection diagram	ISO 4401-05-04-0-05
Number of switching positions	2
Weight	2.4
Seals	NBR
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC

01	02	03	04	05	06		07		08	09	10	11	12	13
Z	DR	10	V			–	3X	/		Y				*

01	Sandwich plate valve	Z
02	3-way pressure reducing valve	DR
03	Size 10	10
04	Pilot-operated	V
Pressure reduction
05	In channel A2	A
	In channel B2	B
	In channel P1	P
Adjustment type
06	Rotary knob	4
	Sleeve with hexagon and protective cap	5
	Lockable rotary knob with scale	6 1)
	Rotary knob with scale	7
07	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Secondary pressure
08	Up to 50 bar	50
	Up to 100 bar	100
	Up to 200 bar	200
	Up to 315 bar	315
09	Internal pilot oil supply, external pilot oil return	Y
10	With check valve (only versions "A" and "B")	no code
10	Without check valve	M
Seal material
11	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Connection thread
12	Pipe thread according to ISO 228/1	no code
12	SAE thread	12
13	Further details in the plain text	*

	1) H-key with material no. R900008158 is included in the scope of delivery

Notice! Preferred types and standard units are specified in the EPS (standard price list).

general

Size			10
Weight (approx.)	Version "A"	kg	2.3
	Version "P"	kg	2.3
	Version "B"	kg	2.7
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seals	°C	-20 … +80
Storage temperature range	NBR seals	°C	-30 ... +80
Storage temperature range	FKM seals	°C	-20 ... +80

hydraulic

Size			10
Maximum set pressure		bar	50 100 200 315
Maximum inlet pressure	Port A①	bar	315
	Port B①	bar	315
	Port P②	bar	315
Maximum secondary pressure	Port A②	bar	315
	Port B②	bar	315
	Port P①	bar	315
Maximum counter pressure	Port TA	bar	160
Maximum counter pressure	Port TB	bar	160
Maximum flow		l/min	100
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils		HL,HLP	NBR, FKM	DIN 51524
Bio-degradable	Insoluble in water	HETG	NBR, FKM	VDMA 24568
	Insoluble in water	HEES	FKM	VDMA 24568
	Soluble in water	HEPG	FKM	VDMA 24568
Containing water	Water-free	HFDU, HFDR	FKM	ISO 12922
Containing water	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! Flame-resistant – containing water: Maximum pressure differential per control edge 210 bar210 bar, otherwise, increased cavitation Life cycle compared to operation with mineral oil HL, HLP 30 to 100 % Maximum hydraulic fluid temperature 60 °C

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

pA-qV characteristic curves

pA-qV characteristic curves (up to 50 bar)

Δpmin-qV characteristic curves

Δp-qV characteristic curves

qV St-qV characteristic curves at Δp (pE – pA)

➀	component side
➁	plate side

Pressure reduction in channel A➁ (“A”)

Pressure reduction in channel B➁ (“B”)

Pressure reduction in channel A➁ (“A…M”)

Pressure reduction in channel B➁ (“B…M”)

Pressure reduction in channel P➀ (“P…M”)

Notice!

Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.

Versions "A" and "P"

Dimensions in mm

➀	plate side – Porting pattern according to ISO 4401-05-04-0-05
➁	component side – Porting pattern according to ISO 4401-05-04-0-05
1	Name plate
2	Adjustment type "4"
3	Adjustment type "5"
4	Adjustment type "6"
5	Adjustment type "7"
6	Dimensions required to remove the key
7	Valve mounting bores
8	Lock nut SW24
9	Hexagon SW10
10	Identical seal rings for ports A➁, B➁, P➁, TA➁, TB➁ (plate side)
11	Pressure gauge connection G1/8 ; 8.5 deep; internal hexagon SW5
12	Hexagon SW30, tightening torque MA = 50 Nm

Valve mounting screws (separate order)

4 hexagon socket head cap screws ISO 4762 - M6 - 10.9-flZn-240h-L

Friction coefficient µtotal = 0.09 to 0.14,

Tightening torque MA = 12 Nm ± 10 %

Notices!

Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. Bored for port X and Y (e. G. for pilot-operated directional valve NG10), version SO30 is applicable! The dimensions are nominal dimensions which are subject to tolerances.

Version "B"
