- Material:R900644679
- Model:MULTISTATION MANI. 7HSR06-25/01D SO8 PH&
Due to extremely high demand, please call 920-337-0234 for availability

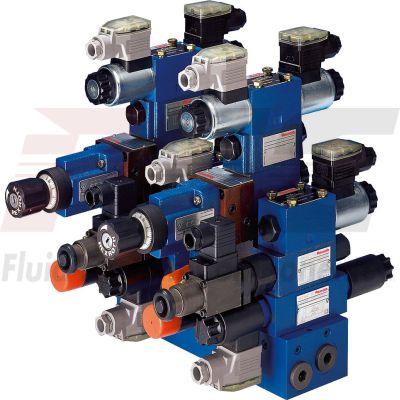

The Bosch Rexroth MULTISTATION MANI. 7HSR06-25/01D SO8 PH (R900644679) is a compact hydraulic control block designed for efficient and reliable operation in a variety of applications. This base element is engineered for ready-for-connection controls using a vertical stacking design, which allows for space-saving installation and easy maintenance. It features common pump and tank lines, as well as separate actuator ports for each station, ensuring flexibility in hydraulic system design. With its phosphate coating conforming to DIN EN standards, the MULTISTATION MANI. 7HSR06-25/01D SO8 PH offers enhanced durability and corrosion resistance. The port sizes for both pump and return are G1/4, facilitating standardized connections. The product has been constructed with the capability to withstand a maximum operating pressure of up to 250 bar, making it suitable for high-pressure applications. This model boasts a compact size with dimensions that support multiple vertical stackings without compromising performance or accessibility. Optional measuring ports can be included in the actuator lines for monitoring and control purposes. Additionally, it allows for the mounting of sandwich plates and valves of size 6, further extending its versatility. The unit's weight is optimized to maintain balance and stability when integrated into hydraulic systems. It operates effectively with HLP hydraulic fluid, ensuring compatibility with standard industrial fluids and maintaining system integrity. Overall, the Bosch Rexroth MULTISTATION MANI. 7HSR06-25/01D SO8 PH is an essential component for those seeking a robust and versatile solution to manage their hydraulic control requirements efficiently. Its design emphasizes ease of use, adaptability, and long-term reliability in demanding operational environments.
Size 6, 7 valves
Compact hydraulic controls for 7 valves of size 6
Unpacked Weight: 12.24 kg
| Base element for ready-for-connection controls in vertical stacking design |
| Compacter hydraulic control block |
| Common pump and tank line |
| Separate actuator ports of the stations |
| Size 6 |
| Maximum operating pressure 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Surface coating | Phosphate coating DIN EN 12476 |
| Port sizes pump and return | G1/2 |
| Productgroup ID | 9,10,11,12,13,14 |
| Connection point | bottom |
| Size | 6 |
| Length | 398 |
| Number of vertical stackings | 7 |
| Port size | G3/8 |
| Weight | 12.24 |
| Hydraulic fluid | HLP |
|
Manifold |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
HSR |
06 |
‒ |
/ |
01 |
|
Number of ready-for-connection controls in vertical stacking design |
||
|
01 |
1 Control |
1 |
|
2 controls |
2 |
|
|
3 Controls |
3 |
|
|
4 controls |
4 |
|
|
5 controls |
5 |
|
|
6 controls |
6 |
|
|
7 controls |
7 |
|
|
8 controls |
8 |
|
|
9 controls |
9 |
|
|
10 controls |
10 |
|
|
02 |
Manifold |
HSR |
|
03 |
Size 6 |
06 |
|
Component series |
||
|
04 |
Port size: A, B = G3/8; P, T = G1/2 |
25 |
|
With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4 |
35 |
|
|
Connection thread |
||
|
05 |
Pipe thread according to ISO 228/1 |
01 |
|
Position of actuator ports |
||
|
06 |
Lateral |
C |
|
At the bottom |
D |
|
|
Version |
||
|
07 |
Standard version |
no code |
|
With measuring ports in A and B |
S08 1) |
|
|
Coating |
||
|
08 |
Phosphate coating according to DIN EN 12476 |
PHOSPHATED 2) |
|
Galvanic coating DIN 50979 |
FE//ZN8//CN/T0 |
|
|
1) Not possible with component series 25 with lateral actuator ports |
||
|
2) Standard version (manganese or zinc phosphate coating) |
||
|
Size |
6 | |
|
Material |
GGG40 | |
|
Surface coating |
Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) | |
|
Operating pressure max. 1) |
bar |
315 |
| 1) | Manifold without valve fitting |
For applications outside these parameters, please consult us!
