BOSCH REXROTH
R901183919

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

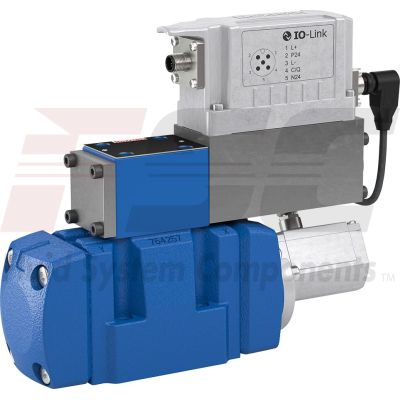

The Bosch Rexroth 4WRLE10V100L-4X/MXY/24A1 (R901183919) is a high-performance industrial hydraulic valve designed for precise control of oil flow direction, as indicated by its spool symbol V. This valve is characterized by its size and features a linear characteristic curve with a pilot-operated spool valve mechanism. It includes external pilot oil supply and return, ensuring reliable operation in various applications. Equipped with integrated electronics, the 4WRLE10V100L-4X/MXY/24A1 offers electrical actuation for seamless integration into complex hydraulic systems. Its electrical connection is facilitated via a Connector pole PE in accordance with EN standards, assuring secure and robust connectivity. The product adheres to several conformity standards including CE marking for electromagnetic compatibility, the EU's RoHS Directive, and the REACH Regulation EC no., signifying compliance with environmental and safety regulations. This valve has multiple ports as per its product group identification and supports subplate mounting for installation ease. It follows the NFPA T.. R D SizeCETOP D nominal flow pattern and also conforms to ISO connection diagram standards, providing versatility across different system designs. The maximum pressure capacity of this valve ensures it can withstand demanding operations. The supply voltage required for optimal performance is 24 VDC. With analog connectivity accepting command values of 0-10 V, the unit can be finely tuned to specific system requirements. The Bosch Rexroth 4WRLE10V100L-4X/MXY/24A1 valve is compatible with a variety of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. NBR seals are used to maintain integrity under various operating conditions. Its weight is carefully calibrated to balance durability with ease of handling during installation or maintenance procedures.
