BOSCH REXROTH
R901184008

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

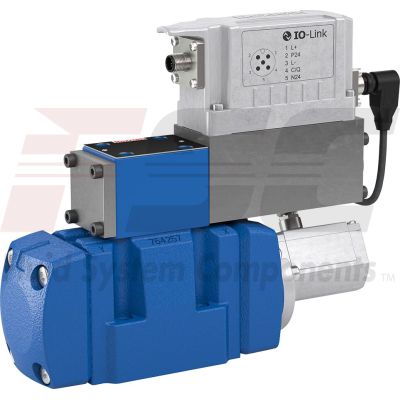

The Bosch Rexroth 4WRLE10V1-100L-4X/MXY/24A1 (R901184008) is a state-of-the-art industrial hydraulic valve designed for high performance and reliability in controlling oil flow direction. This spool valve is pilot-operated with a characteristic linear curve and requires an external pilot oil supply and return. It features a V spool symbol and is capable of withstanding maximum pressure levels, ensuring durability and longevity in demanding applications. Equipped with integrated electronics for electrical actuation, the 4WRLE10V1-100L-4X/MXY/24A1 offers precise control and high accuracy due to its internal piston position feedback. The valve's conformity to CE standards for electromagnetic compatibility, as well as compliance with the RoHS Directive and REACH Regulation, underscores its commitment to environmental considerations and safety. With a nominal flow capacity, the valve operates on a supply voltage of 24 VDC. It boasts an analog connectivity option with a command value input of 0-10V. The number of ports aligns with industry standards, facilitating ease of integration into various hydraulic systems. Designed for subplate mounting, the connection diagram follows NFPA T..R D Size CETOP D standards, along with ISO specifications for seamless installation. The NBR seals within the valve are compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The electrical connection is facilitated via a Connector pole PE according to EN Productgroup ID specifications. Its robust construction includes a weight specification that ensures stability once installed. Overall, the Bosch Rexroth 4WRLE10V1-100L-4X/MXY/24A1 is engineered to deliver exceptional performance in hydraulic system applications where precision and control are paramount.
