BOSCH REXROTH
R901185825

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

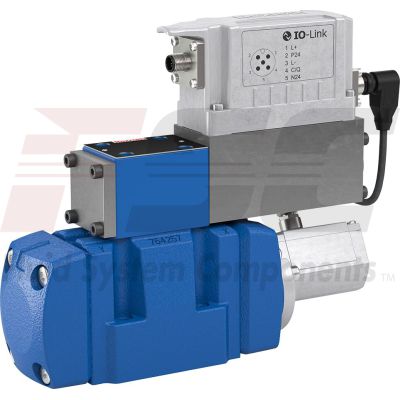

The Bosch Rexroth 4WRLE10Q3-100M-4X/MXY/24A1 (R901185825) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction. Featuring a size symbol Q and electrical actuation with integrated electronics, this valve is characterized by its progressive spool with linear fine control for precision operations. The pilot-operated spool valve has an external pilot oil supply and return, and it utilizes a spool symbol Q for its operation. The 4WRLE10Q3-100M-4X/MXY/24A1 valve is capable of handling a maximum pressure, with an electrical connection that includes a Connector pole PE conforming to EN standards. Its product group ID highlights the number of ports available for connectivity, and the integrated electronics simplify the controls process. Designed for subplate mounting, this valve follows the NFPA T.. R D Size CETOP D and ISO connection diagrams, ensuring compatibility with standard systems. It operates on a VDC supply voltage and offers multiple switching positions. The weight of the valve is optimized for its function while maintaining robust performance. Seals made from NBR (Nitrile Butadiene Rubber) ensure durability against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Connectivity options include analog command value input ranging from 0 to 10 volts. In terms of conformity, the Bosch Rexroth 4WRLE10Q3-100M-4X/MXY/24A1 adheres to CE marking regulations for electromagnetic compatibility within the EU as well as meeting RoHS Directive and REACH Regulation EC requirements. This ensures that it not only performs to high standards but also aligns with environmental and safety regulations within the industry.
