BOSCH REXROTH
R901332323


$1,112.00 USD
  • BOSCH REXROTH
  • Material:R901332323
  • Model:2FRM6SB76-3X/16QMV

Due to extremely high demand, please call 920-337-0234 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

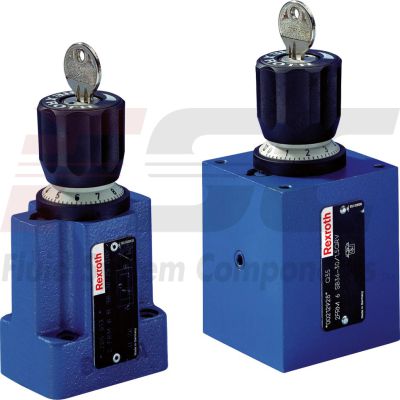

The Bosch Rexroth 2FRM6SB76-3X/16QMV (R901332323) is an industrial hydraulic valve designed for precise flow control within a hydraulic system. This valve is a size 6, mechanically actuated flow control valve that provides reliable performance by maintaining a constant flow regardless of pressure changes or temperature variations. It features direct actuation without the need for closing the pressure compensator, making it suitable for control panel installation. Equipped with a rotary knob and scale, operators can easily adjust and set the desired flow rate. The model does not include a check valve, which means it allows free flow in one direction. The spool symbol for this valve is A ↔ B, B ↔ A, signifying its bidirectional capability. The 2FRM6SB76-3X/16QMV is built to handle maximum pressures efficiently and comes with FKM seals that are compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. Its threaded connection ensures secure attachment within the hydraulic circuit. This model's design includes an orifice bush and a pressure compensator to guarantee consistent flow rates even when external conditions vary. The compensator adjusts fluid passage to balance out any fluctuations in channel A's pressure to maintain steady operation. With its robust construction and reliable performance characteristics, the Bosch Rexroth 2FRM6SB76-3X/16QMV valve is an essential component for systems requiring precise flow control without sacrificing efficiency or performance stability.


Size 6, A → B, B → A, mechanically actuated

Industrial hydraulic valve in a high performance range. Reliable control of the flow to setting value.

Unpacked Weight: 1.800 kg

General information

The flow control valve type 2 FRM is a 2-way flow control valve.

It is used for maintaining a constant flow, independent of pressure and temperature.

The valve basically consists of housing (1), rotary knob (2), orifice bush (3), pressure compensator (4) and an optional check valve (8).



Flow control valve type 2FRM 6 SB…RV

(without external closing, with check valve, with threaded connectionfor control panel installation)

The flow from channel A to channel B is throttled at the throttling point (5). The throttle cross-section is set by turning the rotary knob (2).

To ensure a pressure-independent and constant flow in channel B, a pressure compensator (4) is fitted downstream of the throttling point (5).

The compression spring (6) presses the pressure compensator (4) downwards against its stop and keeps the pressure compensator (4) in the open position when there is no flow through the valve. When fluid flows through the valve, the pressure acting in channel A applies a force to the pressure compensator (4) via orifice (7).

The pressure compensator (4) moves into the controlled position until the forces balance. If the pressure in channel A rises, the pressure compensator (4) moves in the closing direction until the forces are balanced again. Due to this continuous compensation of the pressure compensator (4), a constant flow is obtained.

The free return flow from channel B to channel A is directed via the check valve (8).

Type 2FRM 6 SB76-3X/..RV

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated
Direct actuated
Without closing of the pressure compensator for control panel installation
Rotary knob with scale
Without check valve
Maximum operating pressure 315 bar
Size 6
Maximum flow 32 l/min
Component series 3X
Spool symbolA → B, B → A
Max. pressure315
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationwith mechanical actuation
Size6
Max. flow16
Type of connectionThreaded connection
Connection diagramISO 228-1
Number of switching positions2
Weight1.800
SealsFKM
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR

01

02

03

04

05

06

07

08

09

10

2FRM

6

6

3X

/

V

*

01

2-way flow control valve

2FRM

02

Size 6

6

03

without closing of the pressure compensator for control panel installation

A

Adjustment type

04

Lockable rotary knob with scale

1)

3

Rotary knob with scale

7

05

Zero position of the marking at port P

6

06

Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)

3X

Flow (A → B)

07

up to 0.2 l/min

0,2Q

up to 0.6 l/min

0,6Q

up to 1.5 l/min

1,5Q

up to 3.0 l/min

3Q

up to 6.0 l/min

6Q

up to 10 l/min

10Q

up to 16 l/min

16Q

up to 25.0 l/min

25Q

up to 32.0 l/min

32Q

08

With check valve

R

Without check valve

M

Seal material

09

FKM seals (other seals upon request)

V

Observe compatibility of seals with hydraulic fluid used.

10

Further details in the plain text

*

1) Key with material no. R900008158 is included in the scope of delivery.

Preferred types and standard units are contained in the EPS (standard price list).

general

Size

6

Weight (approx.)

kg

1.5

Installation position

any

Ambient temperature range

°C

-20 … +50

hydraulic

Size

6

Maximum operating pressure 1)

Anschluss A

bar

315

Pressure differential Δp with free return flow B → A

See characteristic curves

Minimum pressure differential

bar

6 … 14

Pressure stable (qV max) to Δp = 315 bar

%

± 2

Maximum flow

l/min

0.2 0.6 1.5 3 6 10 16 25 32

Minimum flow

up to 100 bar

l/min

0.01 0.03 0.05 0.07 0.1 0.25

up to 315 bar

l/min

0.03 0.05 0.07 0.1 0.05

Hydraulic fluid

Mineral oil (HL, HLP) according to DIN 51524, other hydraulic fluids on request

Hydraulic fluid temperature range

°C

-20 … +80

Viscosity range

mm²/s

10 … 800

Maximum admissible degree of contamination of the hydraulic fluid 2)

Class 20/18/15 according to ISO 4406 (c)
1) In applications with rectifier sandwich plate up to 210 bar
2) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Flow dependent on the scale setting (flow control A → B)

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

Δp-qV characteristic curve via check valve (B → A) orifice closed

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

pE-qV characteristic curve

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

Temperature dependency at Δp = 20 bar

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

simplified

Detailed

without check valve;

without external closing

Type 2FRM 6 SB…MV

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

with check valve;

without external closing

Type 2FRM 6 SB…RV

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

Threaded port for control panel installation – version "SB"

Dimensions in mm

technical illustration-R901332323-Size 6, A → B, B → A, mechanically actuated

1

Adjustment type "3" (lockable rotary knob with scale)

2

Adjustment type "7" (rotary knob with scale)

4

Space required to remove the key

6

Name plate

9

Connection thread G3/8 according to ISO 228-1

10

Position of the marking vis-à-vis name plate

Control panel installation:

Valve mounting screws (separate order)

4 hexagon socket head cap screws

ISO 4762 - M5 - 8.8-flZn-240h-L

at friction coefficient μtotal = 0.09 to 0.14,

Tightening torque MA = 7 Nm ± 10 %,

(minimum usable thread depth = 6.5 mm)

Subplates (separate order)

Type G 341/01 (G1/4)

Type G 342/01 (G3/8)

Type G 502/01 (G1/2)
