BOSCH REXROTH
R901390857

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

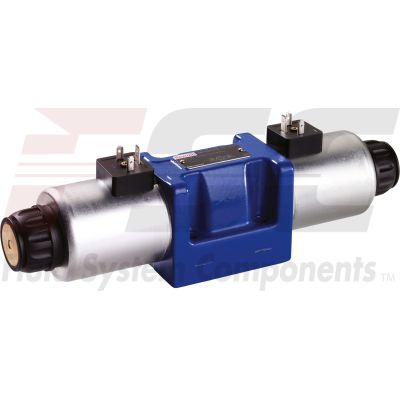

The Bosch Rexroth 4WE 10 E5X/HG24N9K4/M (R901390857) is a high-performance industrial hydraulic valve designed for reliable operation in various hydraulic systems. This direct-actuated spool valve features the spool symbol E, indicating its specific flow path and switching capabilities. It is engineered to switch the direction of oil flow accurately, adhering to the hydraulic symbol requirements. With a maximum pressure capacity and a connector pole PE electrical connection conforming to EN standards, this valve ensures robust performance in demanding environments. The product belongs to a distinguished product group, identifiable by its unique ID numbers, which signifies its place within Bosch Rexroth's extensive range of hydraulic components. The 4WE 10 E5X/HG24N9K4/M valve is solenoid-actuated, offering precise control through its solenoid actuation mechanism. It has been constructed with a size designation that fits standard subplate mounting configurations, making installation straightforward. The connection diagram complies with both NFPA T3.5.1 R2 D03 and ISO standards for versatility and ease of integration into existing systems. Operating on a supply voltage of 24 VDC and featuring multiple switching positions, this valve can handle a significant flow rate while maintaining efficiency and reliability. Its weight is optimized for balance between durability and ease of handling during maintenance or setup procedures. Sealed with NBR (nitrile butadiene rubber), the 4WE 10 E5X/HG24N9K4/M is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. This adaptability ensures that it can be used across different systems without concern for fluid compatibility issues. In summary, the Bosch Rexroth 4WE 10 E5X/HG24N9K4/M offers robust performance for industrial applications requiring precise hydraulic flow direction control with its durable construction and versatile design features.
