HYDAC
2610192
$89.11 USD
- HYDAC
- Material:2610192
- Model:WK06G-01-C-N-0--QS
- Summary:WK06G-01-C-N-0 QS
Due to extremely high demand, please call 920-337-0234 for availability

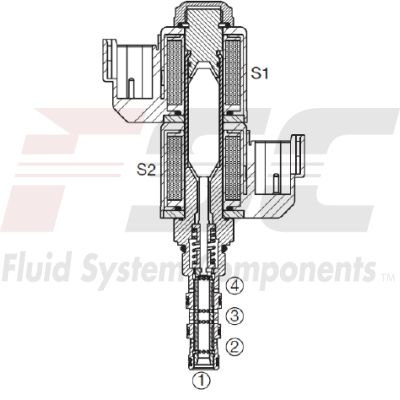

The solenoid-actuated 4/3 directional spool valve WK06E is a direct acting cartridge valve with two coils. In de-energized mode it permits a flow from port 3 to 1 while ports 2 and 4 are blocked. When energizing the one or the other coil either a parallel or a crosswise flowis achieved. Cavity UNF 9/16-18. Qmax = 7 l/min Pmax = 350 bar
