HYDRAFORCE
5000138

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

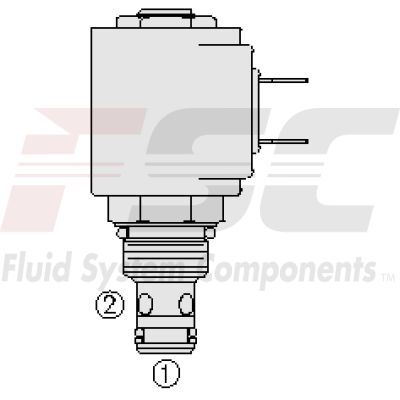

The Hydraforce 5000138 (5000138) is a solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve designed primarily to function as a blocking or load-holding device for low flow circuits. The operation of this model is twofold: when de-energized, the sf0820x acts as a check valve allowing fluid flow from port 1 to port 2 while blocking the flow in the reverse direction. Upon energization, the cartridge’s poppet lifts to open the flow path from port 2 to port 1, though in this mode, the flow from port 1 to port 2 is substantially restricted. This valve features a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, and its cartridges are voltage interchangeable. The unitized, molded coil design enhances durability and performance reliability. For environments requiring robust performance, optional waterproof E-Coils are available that are rated up to IP69K. Additionally, it boasts corrosion-resistant plating that withstands up to 960 hours of salt spray per ASTM B117 standards. Its industry common cavity and compact size make it versatile for integration into various hydraulic systems without requiring substantial space or modifications. This combination of features makes the Hydraforce 5000138 an efficient solution for controlling fluid flow in low-flow applications where space and reliability are critical.
