- Model:SV08-21S-6T-N-115AP SOLENOID VALVE
- Summary:SOLENOID VALVE POPPET, 2 WAY, NORMALLY OPEN
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

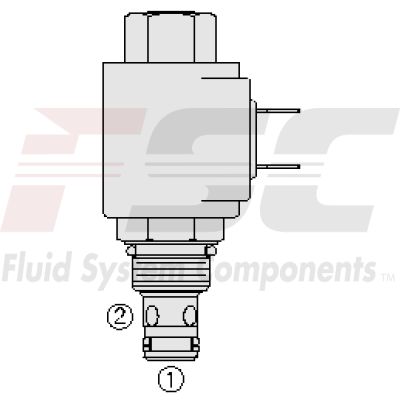

The Hydraforce SV08-21S-6T-N-115AP (5001480) is a solenoid-operated, 2-way, normally open, poppet-type screw-in hydraulic cartridge valve meticulously designed for low leakage in load-holding applications. This model is distinguished by its ability to allow flow from port 2 to port 1 when de-energized, while severely restricting flow from port 1 to port 2. Upon energization, the valve's poppet firmly closes on its seat to block flow from port 2 to port 1, ensuring secure load holding. The valve is engineered to permit flow from port 1 to port 2 once the solenoid force is overcome. Key features of this valve include a continuous-duty rated coil and a hardened seat that enhances longevity and minimizes leakage. The SV08-21S-6T-N-115AP offers optional coil voltages and terminations, making the cartridges interchangeable across various voltages. It also boasts a unitized, molded coil design and includes a manual override option. For environments requiring robust durability, optional waterproof E-Coils rated up to IP69K are available. This compact valve fits industry-common cavity specifications and supports maximum internal leakage of only five drops per minute at pressures up to 207 bar (3000 psi). It operates efficiently within fluid temperatures ranging from -40°C to +120°C. The construction involves steel with a hardened work surface and zinc plating for external parts; Buna N O-rings and Teflon backup rings ensure reliable sealing. Accessories for the SV08-21S-6T-N-115AP include seal kits with installation instructions and various housings and coils options like the 08 size D coils or E coils, enhancing its adaptability for different system requirements. This makes it an ideal choice for applications demanding precise control over hydraulic flow with minimal leakage in a compact design.
The Hydraforce SV08-21S-6T-N-115AP (5001480) is a solenoid-operated, 2-way, normally open, poppet-type screw-in hydraulic cartridge valve meticulously designed for low leakage in load-holding applications. This model is distinguished by its ability to allow flow from port 2 to port 1 when de-energized, while severely restricting flow from port 1 to port 2. Upon energization, the valve's poppet firmly closes on its seat to block flow from port 2 to port 1, ensuring secure load holding. The valve is engineered to permit flow from port 1 to port 2 once the solenoid force is overcome. Key features of this valve include a continuous-duty rated coil and a hardened seat that enhances longevity and minimizes leakage. The SV08-21S-6T-N-115AP offers optional coil voltages and terminations, making the cartridges interchangeable across various voltages. It also boasts a unitized, molded coil design and includes a manual override option. For environments requiring robust durability, optional waterproof E-Coils rated up to IP69K are available. This compact valve fits industry-common cavity specifications and supports maximum internal leakage of only five drops per minute at pressures up to 207 bar (3000 psi). It operates efficiently within fluid temperatures ranging from -40°C to +120°C. The construction involves steel with a hardened work surface and zinc plating for external parts; Buna N O-rings and Teflon backup rings ensure reliable sealing. Accessories for the SV08-21S-6T-N-115AP include seal kits with installation instructions and various housings and coils options like the 08 size D coils or E coils, enhancing its adaptability for different system requirements. This makes it an ideal choice for applications demanding precise control over hydraulic flow with minimal leakage in a compact design.
Materials:
Steel with hardened work surface zinc plated exposed. Buna N o-ring and
Teflon back-up rings
| Ratings | Flow Ratings Flow rating: See performance chart Maximum internal leakage: 5 drops/min Maximum at 207 bar (3000 psi) Pressure Ratings Pressure rating: 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 120 °C |
| Electrical Parameters | Pull in voltage:
85% of nominal at 40 °C (104 °F) Drop out voltage: 5% of nominal |
| Performance |  |
| Installation Specifications | Cavity: 08-size-2-way Cavities |
| Order Code | POSITION CODE DESCRIPTION SV08-21EG-H-J-L E Manual Override E BLANK NONE E HP Momentary Push Override, Button with Protective Nut E K Momentary Push Override, Knob E P Momentary Push Override, Button G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
