HYDRAFORCE
5001676
$131.00 USD
- HYDRAFORCE
- Material:5001676
- Model:SV08-21-8T-N-115AG SOLENOID VALVE
- Summary:SOLENOID VALVE POPPET, 2 WAY, NORMALLY OPEN
Quantity in stock: 1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

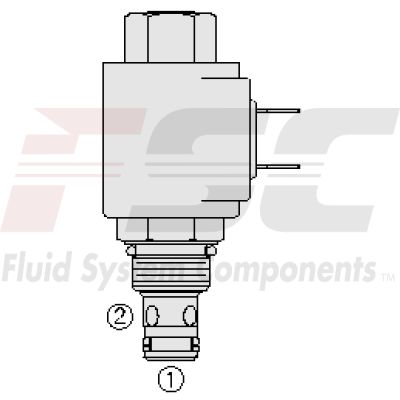

The Hydraforce SV08-21-8T-N-115AG (5001676) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve specifically designed for low leakage in load-holding applications. This valve is particularly suited for scenarios where flow control and leakage prevention are critical. When de-energized, the SV08-21 allows flow from port 2 to port 1 while severely restricting flow from port 1 to port 2. Upon energization, the valve's poppet closes against its seat, effectively blocking flow from port 2 to port 1. The design enables reverse flow from port 1 to port 2 after overcoming the solenoid force. Key features of this model include a continuous-duty rated coil and a hardened seat which ensure long life and minimal leakage. It offers optional coil voltages and terminations for flexibility in application, and its cartridges are voltage interchangeable which simplifies maintenance and replacement processes. The unitized, molded coil design enhances durability while an optional manual override provides additional operational control. For environments requiring robust protection against moisture and dust, waterproof E-Coils rated up to IP69K are available. The compact size of the SV08-21 makes it ideal for integration into a variety of system configurations without requiring extensive space. It operates effectively within a temperature range of -40°C to +120°C and can handle pressures up to 207 bar (3000 psi). Its steel construction with zinc plating and Buna N O-rings with Teflon backup rings ensures reliability and resilience in challenging conditions. This model is compatible with industry-common cavity specifications making it an adaptable solution for diverse hydraulic systems.
The Hydraforce SV08-21-8T-N-115AG (5001676) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve specifically designed for low leakage in load-holding applications. This valve is particularly suited for scenarios where flow control and leakage prevention are critical. When de-energized, the SV08-21 allows flow from port 2 to port 1 while severely restricting flow from port 1 to port 2. Upon energization, the valve's poppet closes against its seat, effectively blocking flow from port 2 to port 1. The design enables reverse flow from port 1 to port 2 after overcoming the solenoid force. Key features of this model include a continuous-duty rated coil and a hardened seat which ensure long life and minimal leakage. It offers optional coil voltages and terminations for flexibility in application, and its cartridges are voltage interchangeable which simplifies maintenance and replacement processes. The unitized, molded coil design enhances durability while an optional manual override provides additional operational control. For environments requiring robust protection against moisture and dust, waterproof E-Coils rated up to IP69K are available. The compact size of the SV08-21 makes it ideal for integration into a variety of system configurations without requiring extensive space. It operates effectively within a temperature range of -40°C to +120°C and can handle pressures up to 207 bar (3000 psi). Its steel construction with zinc plating and Buna N O-rings with Teflon backup rings ensures reliability and resilience in challenging conditions. This model is compatible with industry-common cavity specifications making it an adaptable solution for diverse hydraulic systems.
Materials:
Steel with hardened work surface zinc plated exposed. Buna N o-ring and
Teflon back-up rings
| Ratings | Flow Ratings Flow rating: See performance chart Maximum internal leakage: 5 drops/min Maximum at 207 bar (3000 psi) Pressure Ratings Pressure rating: 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 120 °C |
| Electrical Parameters | Pull in voltage:
85% of nominal at 40 °C (104 °F) Drop out voltage: 5% of nominal |
| Performance |  |

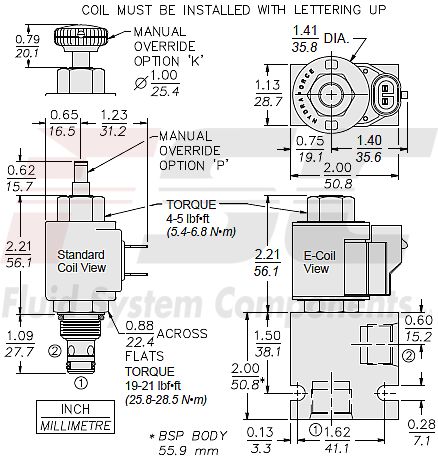

| Installation Specifications | Cavity: 08-size-2-way Cavities |
| Order Code | POSITION CODE DESCRIPTION SV08-21EG-H-J-L E Manual Override E BLANK NONE E HP Momentary Push Override, Button with Protective Nut E K Momentary Push Override, Knob E P Momentary Push Override, Button G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
