HYDRAFORCE
5002986
$138.75 USD
- HYDRAFORCE
- Material:5002986

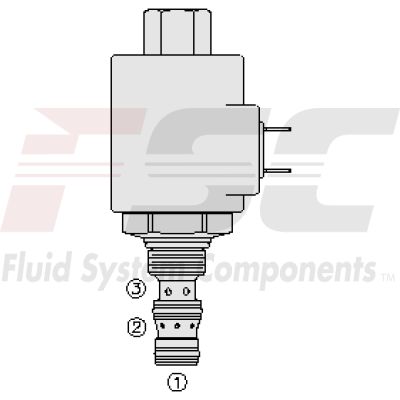

- Model:SV38-38-0-N-24EYZ SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE DOUBLE BLOCKING, 2 POSITION, 3 WAY N.C
Quantity in stock: 2
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce SV38-38-0-N-24EYZ (5002986) is a solenoid-operated, 2 position, 3-way, bidirectional blocking, screw-in hydraulic cartridge valve specifically designed for low leakage in load-holding applications. This model features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It operates by blocking flow from port 3 to port 2 or vice versa when deenergized, and from port 2 to port 1 or vice versa when energized. The unit boasts efficient wet-armature construction and cartridges that are voltage interchangeable. It also includes a unitized, molded coil design with optional waterproof E-Coils rated up to IP69K. The valve is versatile with optional coil voltages and terminations available to suit various operational needs. Performance-wise, the SV38-38-0-N-24EYZ can handle pressures up to 207 bar (3000 psi) and operates effectively within fluid temperatures ranging from -40°C to +100°C with Buna N seals, -26°C to +204°C with fluorocarbon seals, and -54°C to +107°C with polyurethane seals. It supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. This model is designed for easy installation in industry-standard VC083/08-size-3-way cavities without orientation restrictions and requires specific torques for cartridge installation and coil nut tightening. Accessories such as seal kits (SK383XMM) and housings for the valve bodies are available separately to enhance performance or meet specific application requirements.
The Hydraforce SV38-38-0-N-24EYZ (5002986) is a solenoid-operated, 2 position, 3-way, bidirectional blocking, screw-in hydraulic cartridge valve specifically designed for low leakage in load-holding applications. This model features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It operates by blocking flow from port 3 to port 2 or vice versa when deenergized, and from port 2 to port 1 or vice versa when energized. The unit boasts efficient wet-armature construction and cartridges that are voltage interchangeable. It also includes a unitized, molded coil design with optional waterproof E-Coils rated up to IP69K. The valve is versatile with optional coil voltages and terminations available to suit various operational needs. Performance-wise, the SV38-38-0-N-24EYZ can handle pressures up to 207 bar (3000 psi) and operates effectively within fluid temperatures ranging from -40°C to +100°C with Buna N seals, -26°C to +204°C with fluorocarbon seals, and -54°C to +107°C with polyurethane seals. It supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. This model is designed for easy installation in industry-standard VC083/08-size-3-way cavities without orientation restrictions and requires specific torques for cartridge installation and coil nut tightening. Accessories such as seal kits (SK383XMM) and housings for the valve bodies are available separately to enhance performance or meet specific application requirements.
Unit weight:
0.22 kg (0.48 lb)
Blank and P
0.22 kg (0.49 lb)
K
Internal wetted surface area:
155 cm² (24 in²)
Blank
158 cm² (24.5 in²)
P and k
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 0.25 ml/min (5 drops/min) Max at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: Per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV38-38E-H-J-L E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK38-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
08-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
