HYDRAFORCE
5003622

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

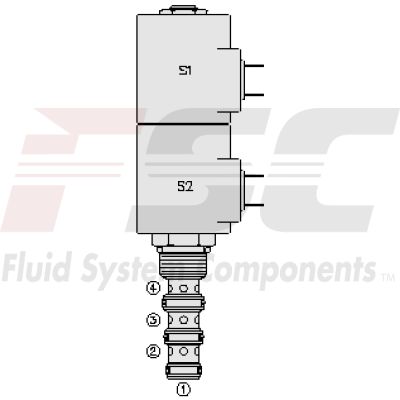

The Hydraforce 5003622 (5003622) is a solenoid-operated, direct-acting, 3-position, 4-way, closed center spool, proportional directional control valve. This hydraulic cartridge valve is designed for use with general-purpose hydraulic fluids. It features a screw-in design that facilitates easy integration into various hydraulic systems. The model offers a manual override option which provides additional control flexibility in system operation. Operationally, the SP1047CX configuration of the valve ensures that when deenergized, it blocks flow to all ports. Energizing coil 1 allows flow from port 3 to port 4 and from port 2 to port 1. Conversely, activating coil 2 permits flow from port 3 to port 2 and from port 4 to port 1. It's important to note that while port 1 can be fully pressurized, it should not be used as the inlet for the valve. Key features of this model include a continuous-duty rated solenoid and a hardened precision spool and cage which enhance its durability and lifespan. The valve offers optional coil voltages and terminations to accommodate different system requirements. Additionally, an optional waterproof E-Coil rated up to IP69K is available for environments requiring robust moisture protection. Its efficient wet-armature construction improves the valve’s performance while interchangeable voltage cartridges add versatility across different applications. The design ensures good linearity and hysteresis characteristics, making it suitable for precise control tasks in fluid power applications. Furthermore, its industry-common cavity allows for compatibility with standard configurations enhancing its applicability across various setups.
