HYDRAFORCE
5004289
$172.00 USD
- HYDRAFORCE
- Material:5004289
- Model:SP08-20M-6T-N-24ER SOLENOID VALVE
- Summary:PROPORTIONAL VALVE 2 WAY, NORMALLY CLOSED
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

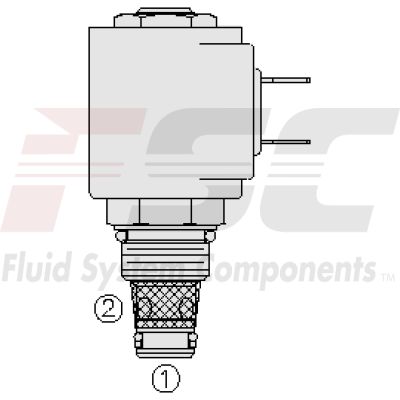

The Hydraforce 5004289 (5004289) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is specifically designed for low leakage blocking and load-holding applications. The SP0820X model functions as a check valve when de-energized, allowing fluid flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. Notable features of this valve include a continuous-duty rated coil and efficient wet-armature construction which enhance its performance and reliability in various operational conditions. Additionally, it offers manual override options and optional waterproof E-Coils that are rated up to IP69K, ensuring robustness in harsh environments. The valve's industry common cavity design allows for compatibility with standard cavities, making it versatile for integration into various hydraulic systems. Its compact size ensures that it does not require extensive space for installation, making it ideal for applications where space is at a premium.
The Hydraforce 5004289 (5004289) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is specifically designed for low leakage blocking and load-holding applications. The SP0820X model functions as a check valve when de-energized, allowing fluid flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. Notable features of this valve include a continuous-duty rated coil and efficient wet-armature construction which enhance its performance and reliability in various operational conditions. Additionally, it offers manual override options and optional waterproof E-Coils that are rated up to IP69K, ensuring robustness in harsh environments. The valve's industry common cavity design allows for compatibility with standard cavities, making it versatile for integration into various hydraulic systems. Its compact size ensures that it does not require extensive space for installation, making it ideal for applications where space is at a premium.
Materials:
Steel with hardened work surfaces zinc-plated exposed
surfaces
Unit weight:
0.10 kg (0.23 lb)
0.10 kg (0.94 lb)
Including coil
Internal wetted surface area:
85.2 cm² (13.2 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 413 bar (6000 psi) SP08-20 only) Burst pressure: 827 bar (12000 psi) SP08-20 only) Flow Ratings Maximum internal leakage: 5 drops/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Filtration requirements: ISO 4406 16/13 |
| Electrical Parameters | Minimum operating PWM dither frequency:
70 Hz |
| Performance |   |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54 N-m (40 ft-lb) In aluminum Coil nut torque: 5.4 to 6.8 N-m (4.5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP08-20E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-2X-T
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
