HYDRAFORCE
5006812

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

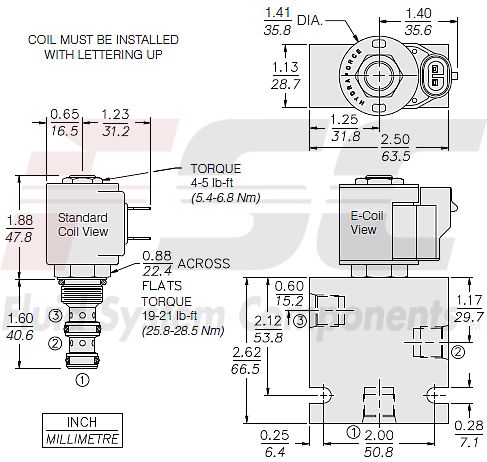

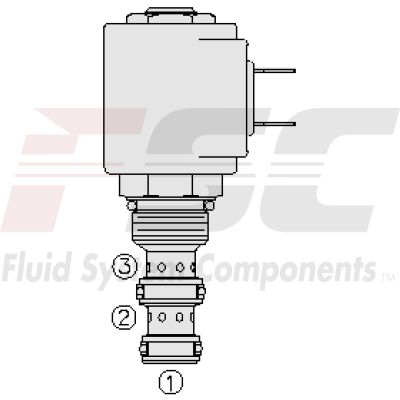

The Hydraforce SV08-35-0-N-00 (5006812) is a high-performance solenoid-operated, spool-type hydraulic valve designed for various fluid control applications. This direct-acting, 3-port valve operates in two positions, offering precise control over hydraulic flow systems. When de-energized, it blocks flow at port 1 while allowing flow from port 2 to port 3. Upon energization, the spool shifts to enable flow from port 2 to port 1 and simultaneously blocks flow at port 3. Constructed for durability and reliable operation, the SV08-35 features a hardened precision spool and cage which ensure an extended operational life even under demanding conditions. It comes with a continuous-duty rated coil and boasts efficient wet-armature construction. The unit's compact design includes interchangeable voltage cartridges and optional coil voltages and terminations to accommodate diverse system requirements. The valve is designed to be fully pressurized at all ports and has an industry-standard cavity (VC083) which simplifies installation processes. It offers manual override options and can be fitted with waterproof E-Coils rated up to IP69K for enhanced protection against harsh environments. Performance-wise, the SV08-35 can handle a maximum operating pressure of 207 bar (3000 psi) with proof pressure up to 241 bar (3500 psi) and burst pressure reaching up to 620 bar (9000 psi). Its operating temperature ranges vary depending on seal material, supporting everything from mineral-based to synthetic hydraulic fluids with lubricating properties. This versatile valve is suitable for a wide array of applications requiring robust control of hydraulic flows in compact spaces, making it an essential component for efficient hydraulic systems management.
