HYDRAFORCE
5007518


$129.25 USD
  • HYDRAFORCE
  • Material:5007518
  • Model:SV08-41-6T-N-24DS SOLENOID VALVE

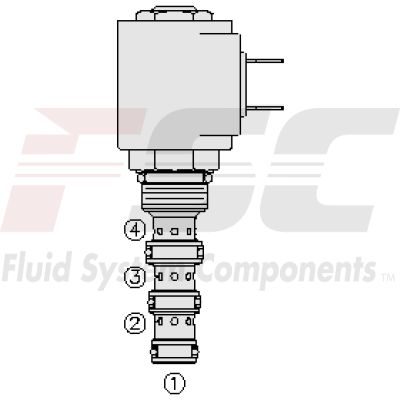

  • Summary:SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION

Due to extremely high demand, please call 920-337-0234 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5007518 (5007518) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for precise control in hydraulic systems. This valve operates by blocking flow to all ports when de-energized, ensuring a fail-safe position that prevents unintended movements or flow of hydraulic fluid. Upon energization, the SV0841 model shifts its spool to open specific pathways—port 3 to port 4 and port 2 to port 1—allowing for controlled and directed flow of hydraulic fluids. This functionality makes it suitable for applications requiring reliable switching between different operational states within hydraulic circuits. Its compact screw-in design facilitates easy installation and maintenance within a wide range of equipment frameworks, enhancing system integration without necessitating extensive modifications.

Unit weight: 0.13 kg (0.28 lb)

Internal wetted surface area: 123 cm² (19.0 in²)

RatingsPressure Ratings
Pressure rating: 207 bar (3000 psi)

Flow Ratings
Flow rating: See performance graph

Maximum internal leakage: 164 ml/min (10 in³/min)
From 4 to port 3, coil de-energized, max at 207 bar (3000
psi)
20 ml/min (1.2 in³/min)
From 2 to port 3, coil de-energized, max at 207 bar (3000
psi)
82 ml/min (5 in³/min)
From 1 to port 2, coil de-energized, max at 207 bar (3000
psi)

Temperature Ratings
Operating fluid temperature: -40 to 100 °C (-40 to 212 °C)
With buna N seals
-26 to 204 °C (-15 to 400 °C)
With fluorocarbon seals
-54 to 225 °C (-65 to 225 °C)
With polyurethane seals

Storage temperature: -40 to 70 °C (-40 to 160 °F)

Ambient temperature: -40 to 90 °C (-40 to 194 °F)

Other Ratings
Corrosion protection: Salt spray 960 hours per ASTM b117
Operating ParametersFluids: Mineral based or synthetic hydraulic fluid with lubricating
properties

Fluid viscosity range: 7.4 to 420 cSt

Maximum operating contamination level: 20/18/14 ISO 4406
Performancehttps://www.hydraforce.com/globalassets/product-images/sv08-41_perf_chrt2022-02-24.gif

Installation SpecificationsCavity: VC08-4
08-size-4-way Cavities
Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb)

Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb)

Orientation restriction: None
Order CodePOSITION CODE DESCRIPTION SV08-41E-H-J-L E Manual Override E BLANK NONE E M Two Position Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
https://www.hydraforce.com/globalassets/product-images/sv08-40_dim_dwg2022-02-24.gif


Seal kit: SK08-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
08-4w valve bodies
Coils:
08 size D
coils
08 size E
coils

Product ZIP File Download Product ZIP File
Product PDF File Download Product PDF File
