HYDRAFORCE
5008201A

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

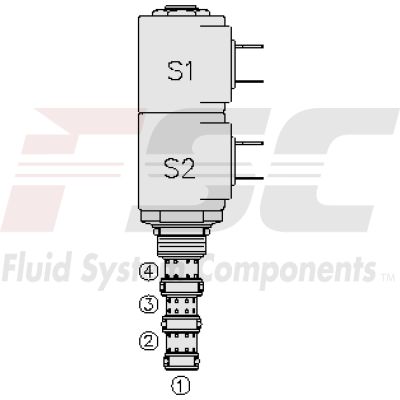

The Hydraforce 5008201A (5008201A) is a solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve. This valve is designed to efficiently control the direction of the flow in hydraulic systems. Its operation is straightforward: when de-energized, the SV0847AX configuration blocks cylinder ports while permitting flow from port 3 to port 1. Energizing coil 1 allows flow from port 3 to port 2 and from port 4 to port 1. Conversely, energizing coil 2 facilitates flow from port 3 to port 4 and from port 2 to port 1. This feature makes it suitable for applications where work port flows are unequal due to cylinder ratios, with the recommendation that higher return flow should be directed to port 2. The valve boasts several features enhancing its functionality and longevity, including a continuous-duty rated solenoid and a hardened precision spool and cage which ensure extended operational life. It offers flexibility in terms of electrical connection options with available optional coil voltages and terminations. For environments requiring robust performance, there is an optional waterproof E-Coils rated up to IP69K, ensuring protection against ingress of dust and high temperature high-pressure water jets. Moreover, its efficient wet-armature construction allows all ports to be fully pressurized. The cartridges are designed to be voltage interchangeable which adds versatility across different system requirements. The unitized, molded coil design supports reliability and durability in demanding applications. Additionally, its compact size and industry-common cavity make it easy to integrate into various hydraulic systems without requiring extensive modifications or additional space.
