HYDRAFORCE
5008471

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

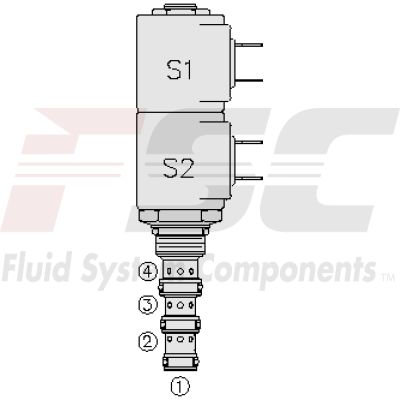

The Hydraforce SV08-47D-0-N-12ER (5008471) is a solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve designed for robust and efficient control in hydraulic systems. This valve operates by blocking the inlet port 3 when de-energized while allowing flow from ports 2 and 4 to port 1. Energizing coil 1 shifts the flow from port 3 to port 4 and from port 2 to port 1. Similarly, energizing coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. The SV08-47D-0-N-12ER features a continuous-duty rated solenoid and a hardened precision spool and cage that enhance its durability and lifespan. It is engineered with optional coil voltages and terminations, including manual override options and waterproof E-Coils that are rated up to IP69K, ensuring versatility across different environmental conditions. The efficient wet-armature construction minimizes energy loss, making it suitable for various applications requiring reliable hydraulic control. This model supports maximum operational pressures up to 240 bar (3500 psi) with proof pressure of up to 344 bar (5000 psi) and burst pressure reaching up to 779 bar (11300 psi). It can handle flow rates up to approximately 11.9 liters per minute (3 gallons per minute) with minimal internal leakage, offering precise control over fluid dynamics in the system. Temperature-wise, it operates efficiently within a range of -40°C to +100°C (-40°F to +212°F) with Buna N seals, extending up to +204°C (400°F) with fluorocarbon seals. The SV08-47D-0-N-12ER is compatible with mineral-based or synthetic hydraulic fluids within a viscosity range of approximately 7.4 to 420 cSt. Overall, the Hydraforce SV08-47D-0-N-12ER offers high performance in compact size for applications requiring reliable solenoid operation in challenging industrial settings.
