HYDRAFORCE
5008745

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

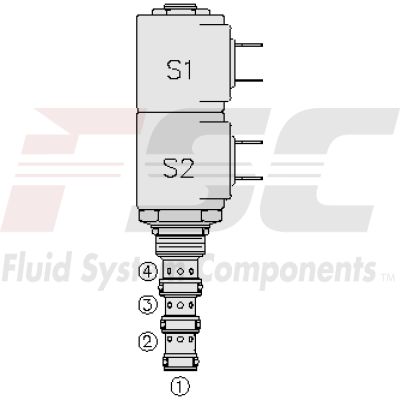

The Hydraforce 5008745 (5008745) is a solenoid-operated, 4-port, 3-position, direct-acting spool type screw-in hydraulic cartridge valve designed for versatile flow control in hydraulic systems. This model features a compact design that fits an industry-common cavity, making it suitable for integration into various hydraulic circuits without requiring extensive modifications. When de-energized, the SV0847CX configuration of this valve blocks all ports, ensuring no flow occurs until activation. Upon energizing coil 1, the valve allows hydraulic fluid to flow from port 3 to port 4 and from port 2 to port 1. Conversely, activating coil 2 changes the flow direction from port 3 to port 2 and from port 4 to port 1. This selective control over flow direction makes it particularly useful in applications where control over multiple actuator movements is required from a single valve position. The valve is built for durability and performance with features like a hardened precision spool and cage which enhance its lifespan even under demanding conditions. It also offers flexibility in electrical connectivity with optional coil voltages and terminations available. For environments requiring robust performance, there are waterproof E-Coils rated up to IP69K that ensure operation in wet conditions. Additionally, the Hydraforce 5008745 boasts continuous-duty rated solenoids and efficient wet-armature construction which contribute to its reliability and efficiency in continuous operation settings. All ports on this valve can be fully pressurized, providing versatility in application across various hydraulic systems. The manual override option further enhances operational control allowing for manual manipulation of the valve state during maintenance or emergency situations.
