HYDRAFORCE
5008826

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

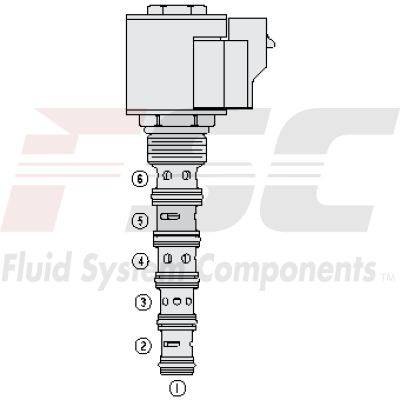

The Hydraforce SV80-61-0-N-12DR (5008826) is a high-performance solenoid-operated, 2-position, 6-way, direct acting, spool-type, screw-in hydraulic cartridge valve designed for precise control in hydraulic systems. The valve operates by blocking flow to ports 5 and 6 while allowing flow between ports 4 and 3, and between ports 1 and 2 when de-energized. Upon energization, it shifts to block flow to ports 2 and 3 while enabling flow between ports 4 and 5, and between ports 1 and 6. This functionality makes it suitable as a selector to direct flow between two cylinders of unequal area ratios, with specific port connections recommended for optimal performance. The SV80-61-0-N-12DR is built for durability and reliability with a hardened precision spool and cage that ensure long service life even under demanding conditions. It features heavy-duty waterproof E-Coils that are rated up to IP69K, making them suitable for use in environments where moisture or dust ingress is a concern. These coils are continuous-duty rated and are interchangeable across different voltage requirements to cater to various operational needs. This valve can handle operating fluid temperatures ranging from -40°C to +100°C with Buna N seals or from -26°C to +204°C with Viton seals. It supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The maximum operating contamination level is rated at ISO standard 20/18/14. With its robust construction and versatile performance characteristics including pressure ratings of up to 207 bar (3000 psi) and precise control over internal leakage rates, the Hydraforce SV80-61-0-N-12DR represents an effective solution for advanced hydraulic system applications requiring reliable directional control of fluid flow.
