HYDRAFORCE
5008859

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

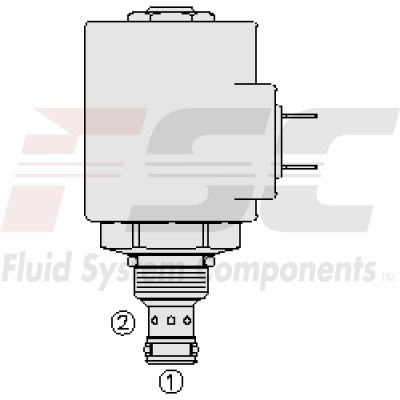

The Hydraforce 5008859 (5008859) is a high-performance hydraulic cartridge valve specifically designed for low flow circuit applications. This solenoid operated, 2 port, normally closed, direct-acting, needle type valve is engineered to function effectively as a blocking or load-holding device. The SV3826 model offers robust construction with a hardened seat that ensures long life and minimal leakage, making it highly reliable in demanding environments. Operationally, the SV3826 remains closed when de-energized, effectively blocking flow in both directions up to its pressure rating. Should the pressure at port 1 exceed this rating, the valve allows flow from port 1 to port 2. Upon energization, the needle point lifts, opening the valve bidirectionally which facilitates the flow across both ports; however, port 2 is designated as the recommended load-holding port. Among its notable features are its double-blocking capability which can obstruct flow in either direction and a relieving function from port 1 to port 2. The SV3826 is also customizable with optional coil voltages and terminations while maintaining interchangeability across cartridges. Its unitized, molded coil design enhances durability and performance consistency. Additionally, it includes a manual override option for improved operational flexibility and conforms to an industry common cavity for ease of integration into various systems. This combination of advanced features makes the Hydraforce SV3826 an essential component for specialized hydraulic applications requiring precise control and reliability.
