HYDRAFORCE
5009424

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

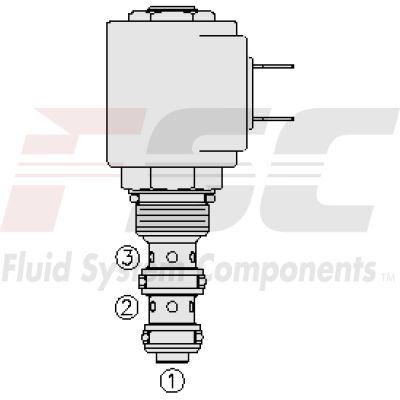

The Hydraforce SV08-30M-6T-N-24DG (5009424) is a high-performance solenoid-operated, 3-port, direct-acting, spool-type screw-in hydraulic directional valve designed for efficient control of hydraulic flow in various applications. This compact unit functions by allowing flow from port 2 to port 1 while blocking flow at port 3 when de-energized; conversely, when energized, it shifts to permit flow from port 3 to port 2 while blocking the outlet at port 1. Notably engineered for continuous-duty operations, the SV08-30M-6T-N-24DG features a hardened precision spool and cage that enhance its durability and service life. This valve is notable for its versatility in configurations with optional coil voltages and terminations, including waterproof E-Coils that are rated up to IP69K for robust performance in demanding environments. The unit's wet-armature construction ensures efficient operation, and its voltage-interchangeable cartridges add to its adaptability across different systems. The fully guided spool ensures reliable and consistent performance. The valve operates within a fluid temperature range of -40 to +100 degrees Celsius with Buna N seals and can handle pressures up to 207 bar (3000 psi). It supports a wide range of fluid viscosities from 7.4 to 420 cSt and maintains maximum operating contamination levels as specified by ISO 4406 standards. Its installation specifications include an industry common cavity (VC083), ensuring compatibility with standard configurations. Additionally, the SV08-30M-6T-N-24DG offers a manual override option and can be equipped with various accessories such as different housing options and seal kits like the SK083NMM for maintenance flexibility. This makes it an essential component for systems requiring precise hydraulic flow direction control under varied operational conditions.
