HYDRAFORCE
5010475

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

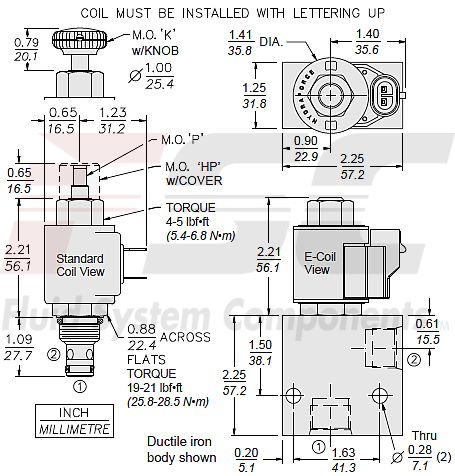

The Hydraforce SF08-23-0-N-24DG (5010475) is a solenoid-operated, 2-way, normally open, poppet-type hydraulic cartridge valve. This valve is specifically engineered to function as a load holding or blocking valve in systems that require low internal leakage at high pressures. When de-energized, the SF08-23's poppet lifts to allow flow from port 2 to port 1, with reciprocal flow also permitted. Upon energization, it acts as a check valve, blocking flow from port 2 to port 1 once the solenoid force of 50 to 150 psi (3.4 to 10.3 bar) is overcome. This model features continuous-duty rated coils and a hardened seat that ensures long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, and its cartridges are voltage interchangeable. The unitized, molded coil design enhances durability and consistency of performance. For ease of maintenance and emergency manual operation, an override option is available. Additionally, the SF08-23-0-N-24DG can be equipped with optional waterproof E-Coils rated up to IP69K for high-level protection against ingress of dust and water under severe conditions. The corrosion-resistant plating on exposed surfaces complements its robust build, suitable for harsh environments. Its industry-standard compact size allows for easy integration into various hydraulic systems without requiring extensive modifications. Hydraforce has also ensured that this valve meets stringent industry standards with a pressure rating up to 350 bar (5000 psi) and maximum internal leakage maintained at a minimal level of 3 drops/min at maximum pressure. The operating fluid temperature ranges supported are extensive due to different seal material options like Buna N, Viton, and Polyurethane catering to varying operational requirements from -40°C up to +204°C (-40°F up to +400°F). This product is designed for use in diverse applications demanding reliable hydraulic control with options for customization through various accessories such as different housings and coils configurations.
