HYDRAFORCE
5010576

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

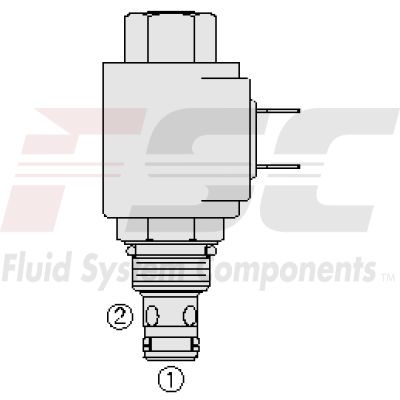

The Hydraforce 5010576 (5010576) is a solenoid-operated, 2-way, normally open, poppet-type hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve ideal for applications that demand low internal leakage at high pressures. The unique construction of this model allows the SF0823 poppet to lift and open from port 2 to port 1 when de-energized, facilitating flow in both directions between these ports. Upon energization, the valve acts as a check valve, effectively blocking flow from port 2 to port 1 after overcoming the solenoid force which requires between 50 to 150 psi (3.4 to 10.3 bar). This model boasts several notable features including a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, making the cartridges interchangeable across different voltages. The unitized, molded coil design enhances durability while an optional manual override provides additional operational control. For environments demanding robust performance against elements, optional waterproof E-Coils are available, rated up to IP69K ensuring protection against ingress of dust and high temperature/high-pressure water jets. Additionally, its corrosion-resistant plating extends the valve’s lifespan even in harsh conditions. This compact-sized cartridge valve aligns with industry common dimensions facilitating ease of integration into various hydraulic systems.
