HYDRAFORCE
5010585

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

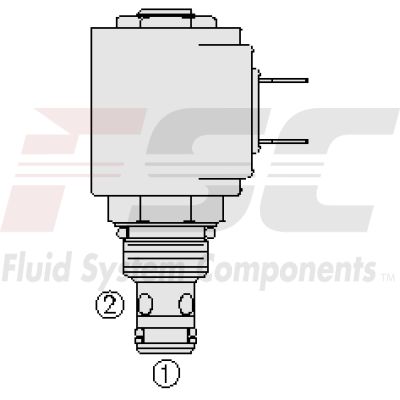

The Hydraforce 5010585 (5010585) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve designed for efficient operation in hydraulic systems. This model features a standard SV0820 and manual override (MO) options, making it versatile for various applications. The 5010585 acts as a blocking or load-holding device suitable for low flow circuits that require pull-only manual override capabilities for handles or cable linkage. Operationally, when the valve is de-energized, it functions as a check valve allowing fluid flow from port 1 to port 2 while blocking the reverse flow from port 2 to port 1. Upon energization, the valve's poppet lifts to open the pathway from port 2 to port 1 while significantly restricting flow in the opposite direction. This dual functionality enhances its utility in hydraulic circuit control. Key features of the Hydraforce 5010585 include a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. It also offers flexibility with optional coil voltages and terminations, accommodating various system requirements. The cartridges are voltage interchangeable which facilitates easy maintenance and replacement. Moreover, its unitized, molded coil design contributes to robust performance and reliability. The compact size of the Hydraforce 5010585 combined with an industry-common cavity design ensures it is not only easy to install but also compatible with standard cavities prevalent in hydraulic systems. This makes it an ideal choice for designers seeking a reliable valve capable of precise control in hydraulic applications.
