HYDRAFORCE
5010625

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

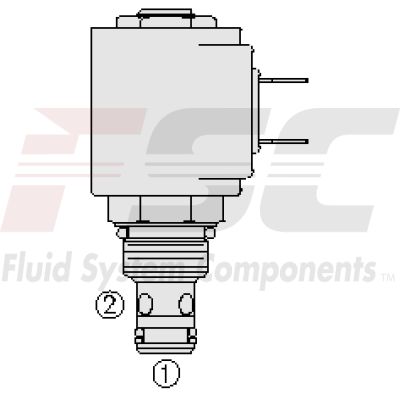

The Hydraforce 5010625 (5010625) is a solenoid-operated, 2-way, normally closed, direct-acting, spool-type, screw-in hydraulic cartridge valve. This valve is meticulously designed to function as a bidirectional blocking valve. In its default state when de-energized, the SV5824xx effectively blocks flow in both directions, ensuring no leakage and maintaining system integrity. Upon energization, the cartridge spool is shifted to facilitate an open bidirectional flow path which allows for fluid movement in both directions through the system. This model boasts several key features enhancing its functionality and reliability. It offers a manual override option which provides an additional layer of operational control allowing for manual operation of the valve during maintenance or in case of an electrical power failure. The optional screen can be added to protect internal components from potential contamination and ensure smooth operation. Designed for continuous duty applications, the coil included with this valve is rated for continuous operation without degradation of performance. Durability is paramount in the design of the 5010625 with its hardened precision spool and cage which significantly extend the lifespan of the valve under harsh operating conditions. Both ports on this model can be fully pressurized which maximizes flexibility in application and installation configurations. Additionally, its efficient wet-armature construction enhances its performance efficiency. For environments requiring rigorous standards, there is an optional waterproof E-Coil available that is rated up to IP69K, providing protection against ingress of dust and high temperature, high-pressure water - making it suitable for use in very demanding environments where moisture or particulate contamination is a concern. This makes the Hydraforce 5010625 an ideal choice for varied hydraulic applications requiring robust performance and reliability.
