HYDRAFORCE
5010827

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

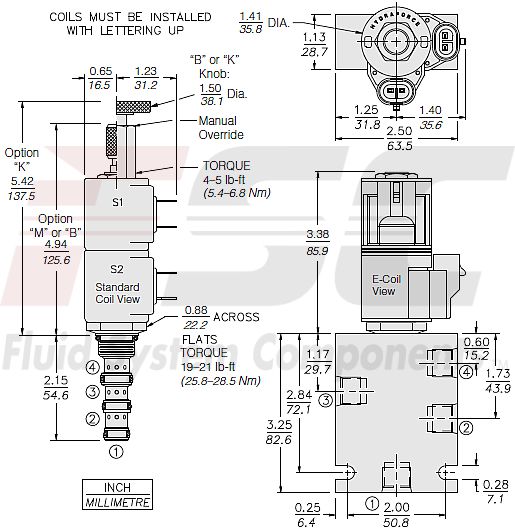

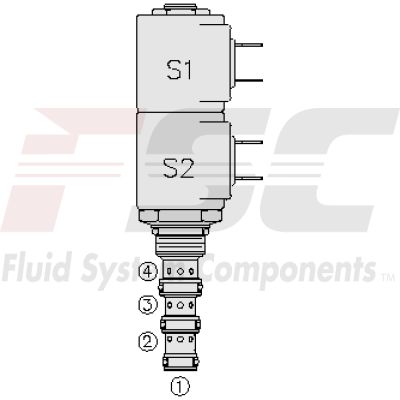

The Hydraforce 5010827 (5010827) is a solenoid-operated, 4-port, 3-position, direct-acting spool type screw-in hydraulic cartridge valve designed for precise control in hydraulic systems. This valve operates by blocking the inlet port 3 when de-energized, while allowing flow from ports 2 and 4 to port 1. Energizing coil 1 shifts the flow from port 3 to port 4 and from port 2 to port 1. Similarly, when coil 2 is energized, it directs flow from port 3 to port 2 and from port 4 to port 1. The valve features a continuous-duty rated solenoid that ensures reliable operation under sustained use. It incorporates a hardened precision spool and cage which contribute to its durability and long service life. The optional coil voltages and terminations provide flexibility for different electrical requirements, while the manual override option offers an additional layer of operational control. For environments requiring robust protection against dust and water ingress, there are optional waterproof E-Coils rated up to IP69K available. The efficient wet-armature construction of the Hydraforce 5010827 enhances its performance in fluid power applications. All ports on this valve can withstand full pressurization, which increases its versatility in various hydraulic circuits. Additionally, its cartridges are voltage interchangeable which simplifies maintenance and replacement processes. The unitized, molded coil design along with an industry-common cavity ensures it fits compactly within system assemblies making it suitable for a wide range of industrial applications needing precise fluid control.
