HYDRAFORCE
5010841
$183.50 USD
- HYDRAFORCE
- Material:5010841
- Model:SP10-20AM-8T-N-12ER SOLENOID VALVE
- Summary:SOLENOID VALVE POPPET, 2 WAY NORMALLY CLOSED
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

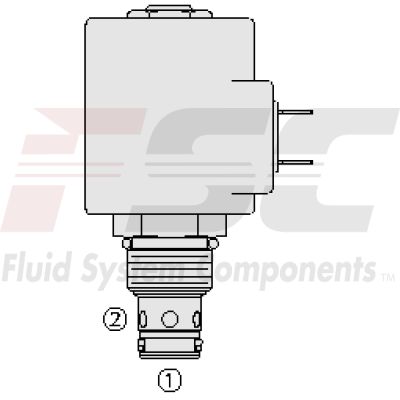

The Hydraforce 5010841 (5010841) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is designed for low leakage blocking and load-holding applications, making it highly effective in managing flow direction and maintaining stability in hydraulic systems. When de-energized, the 5010841 functions as a check valve, allowing fluid to flow from port 1 to port 2 while blocking the reverse flow from port 2 to port 1. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. This valve is noted for its continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance under continuous operational conditions. It includes manual override options which provide an additional layer of operational security and flexibility. For environments requiring robust protection against dust and water ingress, the valve offers optional waterproof E-Coils that are rated up to IP69K. The Hydraforce 5010841 also features an industry common cavity design which simplifies installation processes and enhances compatibility with existing systems. Additionally, it includes a metering option that allows for precise control over fluid flow, further enhancing its application versatility in various hydraulic setups.
The Hydraforce 5010841 (5010841) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is designed for low leakage blocking and load-holding applications, making it highly effective in managing flow direction and maintaining stability in hydraulic systems. When de-energized, the 5010841 functions as a check valve, allowing fluid to flow from port 1 to port 2 while blocking the reverse flow from port 2 to port 1. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. This valve is noted for its continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance under continuous operational conditions. It includes manual override options which provide an additional layer of operational security and flexibility. For environments requiring robust protection against dust and water ingress, the valve offers optional waterproof E-Coils that are rated up to IP69K. The Hydraforce 5010841 also features an industry common cavity design which simplifies installation processes and enhances compatibility with existing systems. Additionally, it includes a metering option that allows for precise control over fluid flow, further enhancing its application versatility in various hydraulic setups.
Unit weight:
0.16 kg (0.34 lb)
Internal wetted surface area:
12065 mm² (18.7 in²)

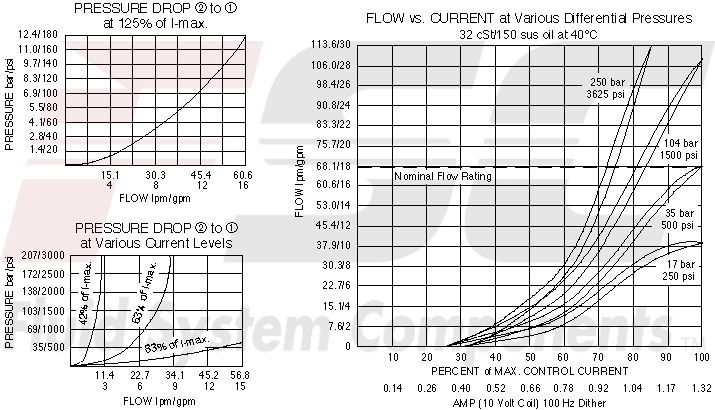

| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 5 drops/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Valve inductance:
173.3 mH At 1.2 A Maximum control current: 1.44 A 10 V D-series coil 1.20 A 12 V D-series coil 1.40 A 12 V E-series coil 0.74 A 20 V D-series coil 0.60 A 24 V D-series coil 0.70 A 24 V E-series coil Threshold current: 0.36 A 10 V D-series coil 0.30 A 12 V D-series coil 0.30 A 12 V E-series coil 0.18 A 20 V D-series coil 0.15 A 24 V D-series coil 0.15 A 24 V E-series coil Dither PWM frequency: 100 Hz |

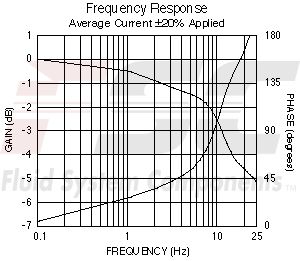

| Performance |   |

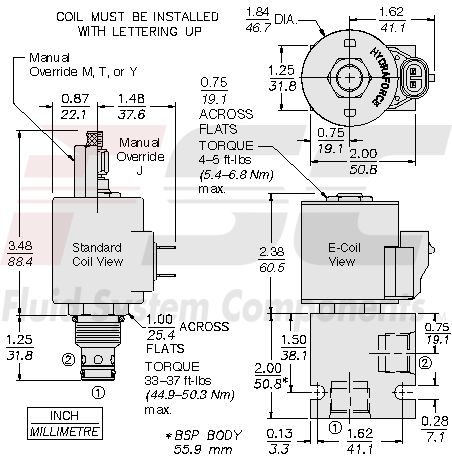

| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 44.9 to 50.3 N-m (33 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP10-20DEG-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
