HYDRAFORCE
5010947

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

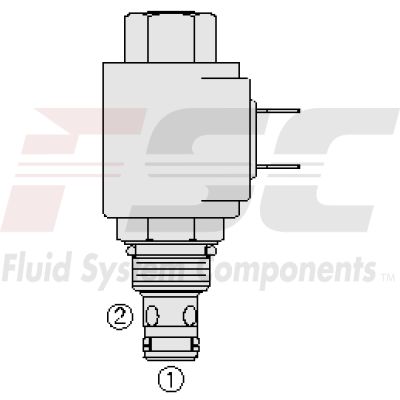

The Hydraforce 5010947 (5010947) is a solenoid-operated, 2-way, normally open, poppet type, screw-in hydraulic cartridge valve tailored for low leakage in load-holding applications. This valve's primary function is to manage the flow direction in hydraulic systems. In its default state when de-energized, the SV0821 model allows fluid to flow from port 2 to port 1 while severely restricting flow from port 1 to port 2. Upon energization, the valve’s poppet closes tightly against its seat, effectively blocking flow from port 2 to port 1. The design enables reverse flow from port 1 to port 2 once the solenoid force is overcome. Key features of this model include a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing the reliability and efficiency of hydraulic systems. The valve also offers flexibility with optional coil voltages and terminations, making it adaptable to various electrical requirements. The cartridges are voltage interchangeable which provides additional versatility for system integration. The unitized, molded coil design contributes to its robustness and durability. Moreover, this model includes a manual override option and can be equipped with optional waterproof E-Coils rated up to IP69K for high resistance against water ingress under severe conditions. Its industry-common cavity facilitates easy installation and replacement in standard setups. The compact size of the Hydraforce 5010947 makes it an excellent choice for applications where space is at a premium but performance cannot be compromised.
