HYDRAFORCE
5015014

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

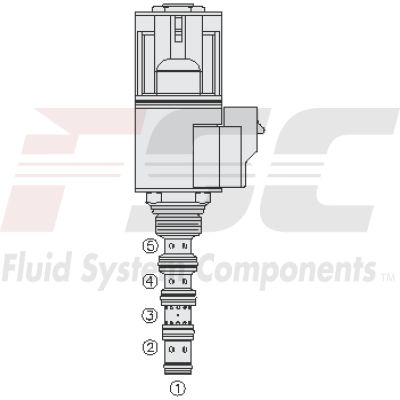

The Hydraforce 5015014 (5015014) is a high-performance hydraulic valve designed for advanced fluid control in various hydraulic systems. This solenoid-operated, 5-port, 3-position, direct-acting, spool-type screw-in cartridge valve includes an integral load sense port which enhances its functionality and efficiency in hydraulic circuitry. The SV0858DX model operates by blocking inlet flow at port 5 when de-energized, while venting the load sense port 1 to port 3 and routing flow from ports 2 and 4 to port 3. Upon energizing coil s1, the valve allows flow from port 5 to port 2 and from port 4 to port 3. Similarly, activating coil s2 permits flow from port 5 to port 4 and from port 2 to port 3, with the load sense at port 1 being connected to port 5 when the spool is in shifted positions. This valve is built for continuous duty and features a hardened precision spool and cage that ensure longevity even under rigorous conditions. It offers options for different coil voltages and terminations to suit varied system requirements, including optional waterproof E-Coils rated up to IP69K for enhanced protection against ingress of dust and high-temperature, high-pressure water jets. Its efficient wet-armature construction along with unitized molded coil design contributes to its compact size yet robust performance. The interchangeable voltage feature across cartridges adds a layer of versatility, making the Hydraforce SV0858DX an essential component for optimizing hydraulic operations across numerous applications.
