HYDRAFORCE
5019212

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

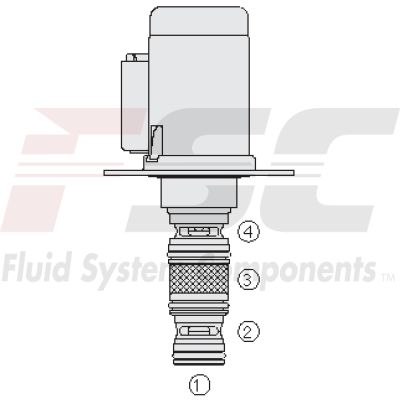

The Hydraforce 5019212 (5019212) is a high-performance, direct-acting, spool-type, 2-position, 4-way directional control valve designed for efficient hydraulic fluid management. This model is specifically engineered as a drop-in, flange-mounted, cartridge-type valve, making it suitable for streamlined integration into various hydraulic systems. The valve operates effectively with general-purpose hydraulic fluids and features an integral waterproof coil that enhances its durability and suitability for rigorous applications. In terms of functionality, the Hydraforce 5019212 offers versatile flow directions depending on its state. When de-energized, it allows flow from port 3 to port 2 and from port 4 to port 1. Conversely, when energized, the cartridge spool shifts to enable flow from port 3 to port 4 and from port 2 to port 1. This switching capability makes it ideal for applications requiring precise control over the direction of fluid flow within a hydraulic circuit. The design of the Hydraforce 5019212 ensures that pressure at the tank port (port 1) does not exceed 50 psi (3.4 bar), which is critical for maintaining proper valve function and longevity. Additionally, its economical drop-in style facilitates easy installation and maintenance. The valve is available with either a 12 VDC or a 24 VDC coil and offers several push-on termination options to accommodate varying setup requirements. Overall, the Hydraforce 5019212 stands out as a robust solution for directional control in hydraulic systems, combining flexibility in application with reliable performance under standard operating conditions.
