HYDRAFORCE
5019602

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

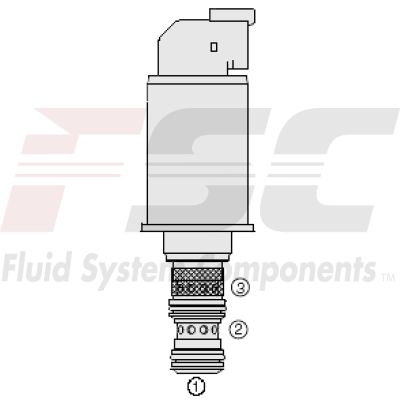

The Hydraforce 5019602 (5019602) is a meticulously designed SV90G39X directional control valve, known for its robust performance in hydraulic systems. This direct-acting, spool-type, 2-position, 3-way valve stands out with its drop-in, flange-mounted cartridge style which simplifies installation processes. Specifically engineered for use with general-purpose hydraulic fluids, the SV90G39X enhances system reliability and efficiency through features such as bidirectional operation, reduced leakage, and a low-pressure drop. The valve operates by allowing flow from port 2 to port 1 when de-energized and shifts to open flow from port 3 to port 2 upon energization, effectively blocking flow at port 1. This functionality makes it highly adaptable to various hydraulic circuit conditions. The integral waterproof coil is a standard feature ensuring durability and consistent performance under diverse environmental conditions. It supports a coil voltage range from 10 to 28 VDC and is equipped with several push-on termination options which optimize connectivity. Additional features include corrosion-resistant plating which extends the valve's lifespan by guarding against rust and degradation. An optional inlet port screen can be added for enhanced resistance to contamination, further safeguarding the hydraulic system's integrity. With higher flow capacity at lower temperatures and fast response times, the SV90G39X stands out as an economical solution for efficient fluid control in hydraulic systems. Optional retrofit mounting options also provide flexibility for system upgrades or replacements.
