HYDRAFORCE
5019620S

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

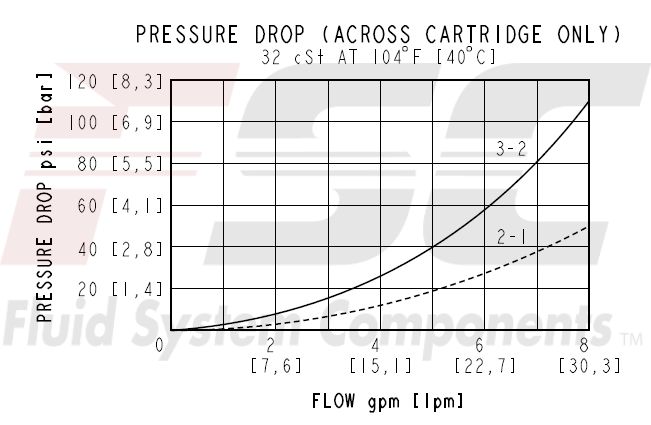

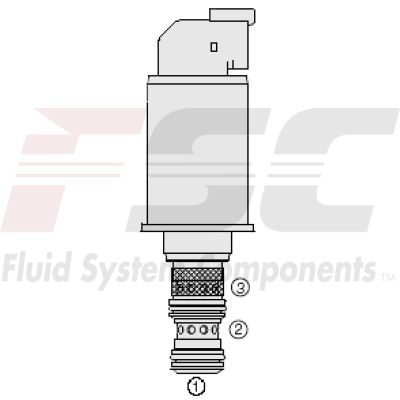

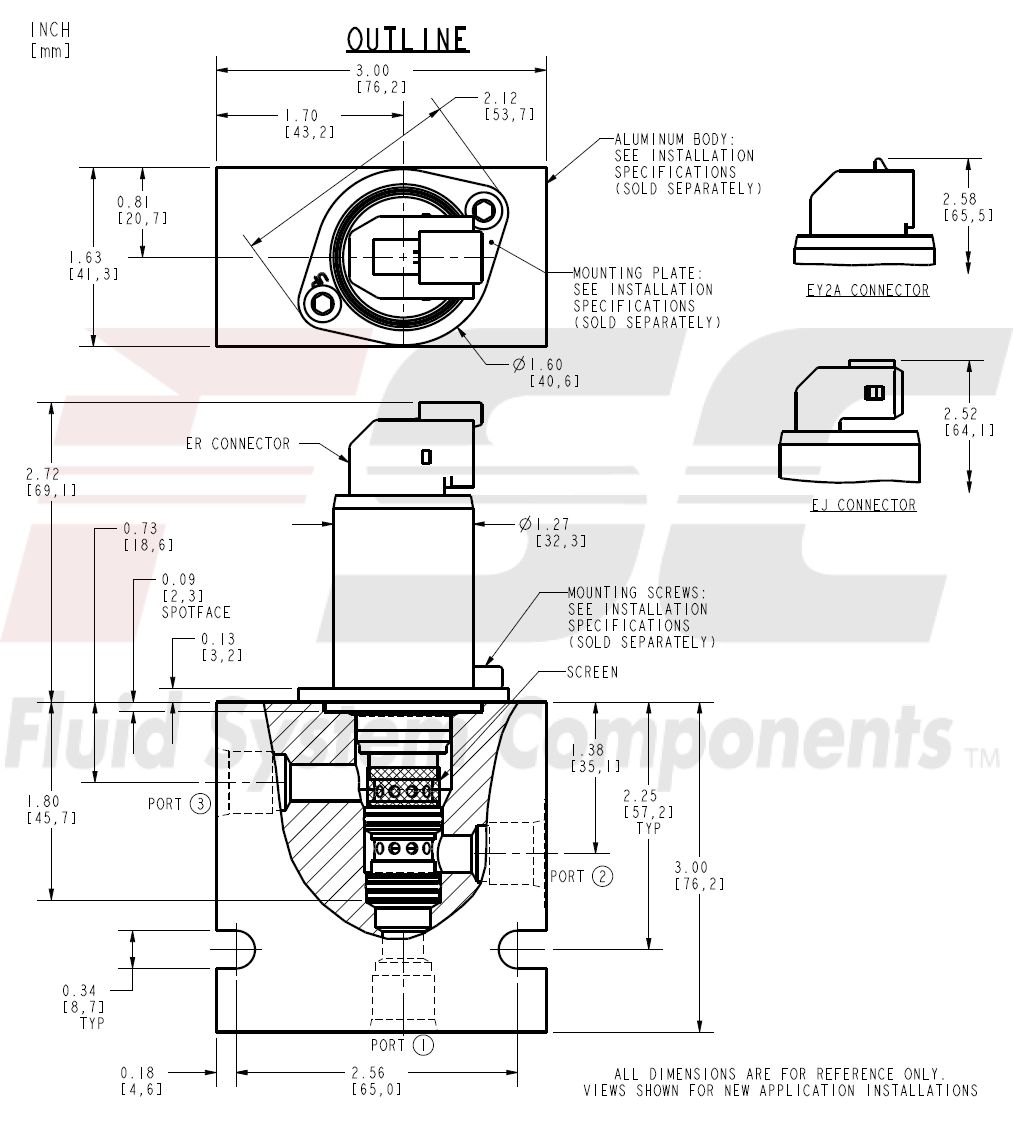

The Hydraforce 5019620S (5019620S) is a robust and efficient hydraulic control valve designed for versatile applications. This SV90G39X model is a direct-acting, spool-type, 2-position, 3-way directional control valve that excels in managing the flow of general purpose hydraulic fluids within a system. Its design features a drop-in, flange-mounted cartridge style that simplifies installation and maintenance while providing a high degree of reliability and performance. The valve operates by allowing flow from port 2 to port 1 when deenergized and shifts to enable flow from port 3 to port 2 when energized, effectively blocking the alternate ports during each mode. This bidirectional operation is complemented by features like reduced leakage and low pressure drop, enhancing the overall efficiency of hydraulic systems. Additionally, the SV90G39X offers fast response times and includes an integral waterproof coil as standard, ensuring durability and consistent performance even in challenging environments. Further enhancing its utility are options such as an inlet port screen which adds resistance against contamination, various coil voltage ranges from 10 to 28 VDC, and multiple push-on termination options for the top-mounted coil. The round flange with optional mounting plates also provides flexibility in orientation during installation. Designed with corrosion-resistant plating and capable of higher flow capacity at lower temperatures, this model stands out as an economical yet high-performing solution for directional control in hydraulic circuits. Retrofit mounting options are also available for systems requiring upgrades or modifications.
