- Material:5024636

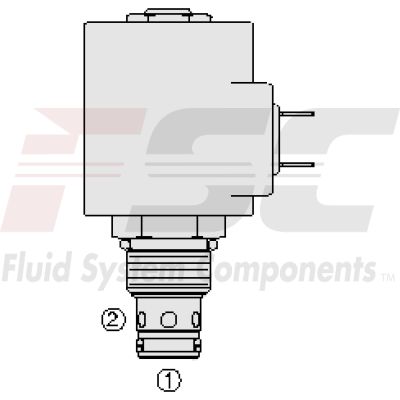

- Model:SV10-24-8T-N-24AG SOLENOID VALVE
- Summary:SOLENOID VALVE SPOOL, 2 PORT, NORMALLY CLOSED
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5024636 (5024636) is a high-performance hydraulic cartridge valve specifically designed for robust and efficient fluid control in hydraulic systems. This solenoid-operated, 2-port, normally closed, direct-acting, spool-type valve is engineered to function as a bidirectional blocking valve, making it highly versatile in application. The SV1024X model operates by blocking flow in both directions when de-energized and allowing bidirectional flow when energized, thanks to its precision-engineered spool that shifts within its cage. The unit boasts several advanced features that enhance its functionality and longevity. It is equipped with a continuous-duty rated coil and features hardened precision components including the spool and cage which ensure extended operational life even under rigorous conditions. The design includes efficient wet-armature construction along with a unitized, molded coil design that contributes to its reliability and performance. Additionally, the Hydraforce 5024636 offers optional coil voltages and terminations to accommodate varying operational requirements and electrical connections. Its ports can withstand being fully pressurized which enhances its utility in complex hydraulic circuits. The valve also provides optional manual override capabilities and can be fitted with waterproof E-Coils rated up to IP69K for enhanced protection against ingress of dust and water, making it suitable for use in harsh environments. With an industry common cavity design, this valve ensures compatibility with standard cavities, simplifying installation and maintenance processes. This makes the Hydraforce 5024636 an ideal choice for applications requiring reliable bidirectional blocking capabilities along with flexible installation options.
The Hydraforce 5024636 (5024636) is a high-performance hydraulic cartridge valve specifically designed for robust and efficient fluid control in hydraulic systems. This solenoid-operated, 2-port, normally closed, direct-acting, spool-type valve is engineered to function as a bidirectional blocking valve, making it highly versatile in application. The SV1024X model operates by blocking flow in both directions when de-energized and allowing bidirectional flow when energized, thanks to its precision-engineered spool that shifts within its cage. The unit boasts several advanced features that enhance its functionality and longevity. It is equipped with a continuous-duty rated coil and features hardened precision components including the spool and cage which ensure extended operational life even under rigorous conditions. The design includes efficient wet-armature construction along with a unitized, molded coil design that contributes to its reliability and performance. Additionally, the Hydraforce 5024636 offers optional coil voltages and terminations to accommodate varying operational requirements and electrical connections. Its ports can withstand being fully pressurized which enhances its utility in complex hydraulic circuits. The valve also provides optional manual override capabilities and can be fitted with waterproof E-Coils rated up to IP69K for enhanced protection against ingress of dust and water, making it suitable for use in harsh environments. With an industry common cavity design, this valve ensures compatibility with standard cavities, simplifying installation and maintenance processes. This makes the Hydraforce 5024636 an ideal choice for applications requiring reliable bidirectional blocking capabilities along with flexible installation options.
Unit weight:
0.16 kg (0.34 lb)
Internal wetted surface area:
99 cm² (15.41 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 276 bar (4000 psi) Burst pressure: 620 bar (9000 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 82 ml/min (5 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 61.0 N-m (45 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-A24EG-H-J-L-M A Position Sensor Option A 24 Standard A P24A Position Indicator Switch with Resticted Flow E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK10-2X-M
(x = seal option)
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
