HYDRAFORCE
5025085

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

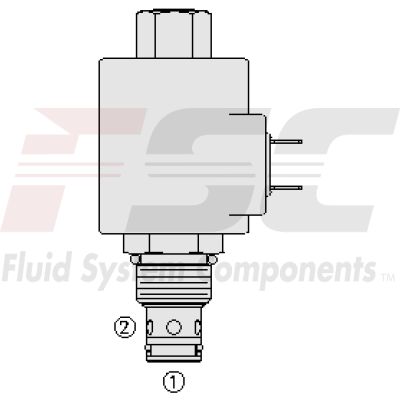

The Hydraforce SV10-29-8T-N-24EG (5025085) is a solenoid-operated, 2-port, normally open, bidirectional, screw-in hydraulic cartridge valve. This valve is primarily designed to serve as a load holding or blocking valve in systems where low internal leakage is critical in both directions. It features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The SV10-29-8T-N-24EG offers flexibility with optional coil voltages and terminations, and its cartridges are voltage interchangeable. For enhanced operational convenience, it includes a manual override option. This model also provides optional waterproof E-Coils, which are rated up to IP69K for superior protection against dust and water ingress, making it suitable for harsh environments. The valve operates efficiently within a pressure rating of up to 207 bar (3000 psi) and requires a minimum differential pressure of 2.8 bar (40 psi) to function correctly. It supports maximum internal leakage of 5 drops/min at 207 bar. The operating fluid temperature ranges from -40°C to +120°C with Buna N seals, -30°C to +205°C with fluorocarbon seals, and -50°C to +80°C with polyurethane seals. Installation specifications include an industry-common cavity VC102 for 10-size 2-way cavities, cartridge installation torque between 32.5 to 35.3 Nm (24 to 26 ft-lb), and coil nut torque from 6.8 to 9.5 Nm (5 to 7 ft-lb). Accessories such as seal kits with installation instructions and various housings for the SV102w valve bodies are available alongside coils sized for both the D and E series models of this unit.
