HYDRAFORCE
5026066
$135.00 USD
- HYDRAFORCE
- Material:5026066
- Model:SPCL10-32M-0-N-00 SOLENOID VALVE
- Summary:SOLENOID PROPORTIONAL VALVE POPPET, 3 PORT, NORMALLY CLOSED U.S. PATENT # 7,921,880
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

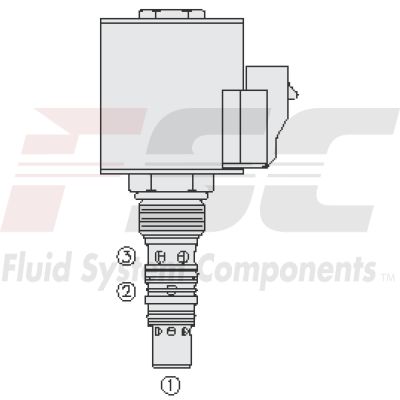

The Hydraforce 5026066 (5026066) is a solenoid-operated, 3-port, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. It is specifically designed for low leakage, blocking, and load-holding applications within hydraulic systems. The valve operates by lifting the poppet when energized to allow flow from port 3 to ports 1 and 2. Notably, port 2 is typically used for load sensing applications but does not include a check valve for isolation which can be crucial in certain hydraulic setups. This model features a continuous-duty rated coil and efficient wet-armature construction that enhances its reliability and performance under continuous operational conditions. Additionally, it offers optional waterproof E-Coils that are rated up to IP69K, providing robust protection against dust and high-temperature high-pressure water jets, making it suitable for harsh environmental conditions. The valve is built to fit an industry common cavity which simplifies installation processes and reduces manifold space requirements in complex systems. The Hydraforce 5026066 excels in applications where precise control of fluid flow is necessary and where space and energy efficiency are valued. Its design ensures minimal leakage and efficient operation, thereby supporting system integrity and performance sustainability in various hydraulic applications.
The Hydraforce 5026066 (5026066) is a solenoid-operated, 3-port, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. It is specifically designed for low leakage, blocking, and load-holding applications within hydraulic systems. The valve operates by lifting the poppet when energized to allow flow from port 3 to ports 1 and 2. Notably, port 2 is typically used for load sensing applications but does not include a check valve for isolation which can be crucial in certain hydraulic setups. This model features a continuous-duty rated coil and efficient wet-armature construction that enhances its reliability and performance under continuous operational conditions. Additionally, it offers optional waterproof E-Coils that are rated up to IP69K, providing robust protection against dust and high-temperature high-pressure water jets, making it suitable for harsh environmental conditions. The valve is built to fit an industry common cavity which simplifies installation processes and reduces manifold space requirements in complex systems. The Hydraforce 5026066 excels in applications where precise control of fluid flow is necessary and where space and energy efficiency are valued. Its design ensures minimal leakage and efficient operation, thereby supporting system integrity and performance sustainability in various hydraulic applications.
Unit weight:
0.2 kg (0.44 lb)
Internal wetted surface area:
178 cm² (27.6 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 5 drops/min Port 1 port 3 at 250 bar (3625 psi) 15 drops/min Port 2 at 250 bar (3625 psi) Hysteresis per cent: 10 % Of max flow (at max control current) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Valve inductance:
173.3 mH At 1.2 A Maximum control current: 1.44 A 10 V D-series coil 1.20 A 12 V D-series coil 1.40 A 12 V E-series coil 0.74 A 20 V D-series coil 0.60 A 24 V D-series coil 0.70 A 24 V E-series coil Threshold current: 0.36 A 10 V D-series coil 0.30 A 12 V D-series coil 0.30 A 12 V E-series coil 0.18 A 20 V D-series coil 0.15 A 24 V D-series coil 0.15 A 24 V E-series coil Dither PWM frequency: 100 Hz |
| Performance |   |
| Installation Specifications | Cavity:
VC10-3B 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SPCL10-32E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
